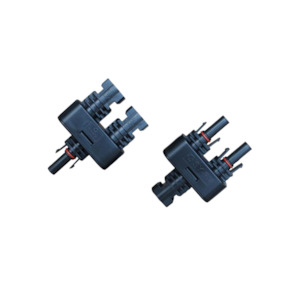

MC4 T Branch Connector Pair
The MC4 T Branch connector is compatible with multi-contact four connectors. It is suitable for use with 2.5 mm 2 , 4 mm 2 , and 6 mm 2 , solar cables in solar projects to connect solar panels in series or parallel.
Available as a male and female pair in 2 to 1 and 3 to 1 configuration.
Quick and reliable connection of the solar cable to the photovoltaic system (solar panels, converters).
Features
- Compatible with MC4 cable coupler solar connector PV-KBT4/KST4.
- 15 Years of production experience in solar connectors
- TUV-approved and quick and easy to install
- Protection class IP67. Suitable for outdoor harsh environments
- Stable connection and reduce maintenance cost.
Specification
MC4 Male and Female connectors
Product NO.
SY-BA21-A/B, SA-BY31-A/B
Insulation material
PPO
Rated Voltage
TUV 1000 DC/ UL 600V DC
Rated Current
20A-40A
Test voltage
6KV(50Hz,1Min)
Contact material
copper, tin-plated
Contact resistance
less than 0.5 m ohm
Degree of protection
IP67
Pin dimension
4.0 MM
Compatible Solar cable
2.5/4.0 /6.0 mm² (14/12/10 AWG)
