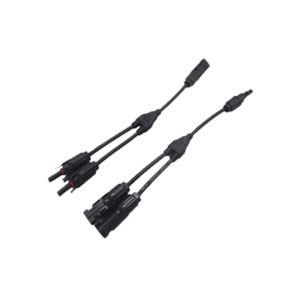

MC4 Y Connector Pair
Quick and reliable connection. Available in: 2 to 1, 3 to 1 and 4 to 1 configuration.
The MC4 Y connector is compatible with four multi-contact connectors. It is suitable for use with 2.5mm2, 4mm2, and 6mm2 solar cables in solar connection projects to connect solar panels in series or parallel.
Features:
- Compatible with MC4 cable coupler solar connector PV-KBT4/KST4.
- 15 years of production experience in solar connectors
- TUV- approved and quick and easy to instal
- Protection class IP67 suitable harsh outdoor environments
- Stable connections and reduced maintenance cost. Specification
mc4 male and female connectors
Product NO.
SY-BY21-A/B, SY-BY31-A/B, SY-BY41-A/B
Insulation material
PPO
Rated Voltage
TUV 1000 DC/ UL 600V DC
Rated Current
20A-40A
Test voltage
6KV(50Hz,1Min)
Contact material
copper tin-plated
Contact resistance
less than 0.5 m ohm
Degree of protection
IP67
Pin dimension
4.0 MM
Compatible Solar cable
2.5/4.0 /6.0 mm² (14/12/10 AWG)
