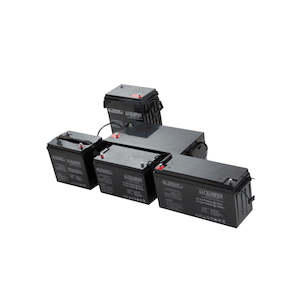

AA Champion 12V AGM Deep Cycle Batteries
AGM batteries are sealed lead-acid batteries designed to provide the best performance in deep-cycle applications. They have a conditional 5-year warranty. Sealed—No Maintenance, Greater Flexibility, and Security. C12V71, C12V104, and C12V104D can ship with standard freight, while C12V130 and larger ship with Main Freight only. Best Possible Warranty
AA Champion AGM batteries are backed by what we believe to be the best warranty in the market. They are conditionally warranted for a 5-year (6 Volt and 12 Volt series) service life, the first year at replacement value and the remaining years pro-rata. Full warranty information and terms and conditions are in the specification tab. About
AA Solar has been supplying for over twenty years. These batteries are used for both off-grid applications and starting batteries.
Our AGM (Absorbent Glass Mat) Deep Cycle batteries have a low self-discharge rate (2% per month) and come with a 5-year warranty. We consider them to be the most efficient and cost-effective battery type available. The AGM technology allows the battery to be mounted in any position with no risk of leakage. Specifications Model Voltage C100 1 Ahr C10 2 Ahr CCA at 20°C Length
(mm) Width
(mm) Height
(mm) Height over terminal
(mm) C12V71 12V 71 55 250 229 138 208 227 C12V104 12V 104 80 400 350 167 179 184 C12V104D 12V 104 80 400 260 169 210 220 C12V130 12V 130 100 500 328 171 214 229 C12V156 12V 156 120 600 407 174 231 233 C12V195 12V 195 150 750 485 172 242 247 C12V260 12V 260 200 1000 520 238 218 233 C12V325 12V 325 250 1250 520 268 220 235
1 C100 = The total Ampere hours that you can pull out of a battery over 100 hours (Deep cycle, house battery usage)
2 C10 = The total Ampere hours you can pull out of a battery over 10 hours (Starting battery usage)
C12V260AH
C12V195AHC
C12V130AH
AGM Warranty.pdf
More Info Providing the best performance in deep cycle applications
- Require no maintenance (i.e. no water addition!)
- Extremely low discharge of corrosive gas
- Lower self-discharge rates, than comparable batteries
- They will last three to five times longer than liquid acid batteries. Economic benefits to the end-user are
- Reduced generator fuel usage
- Shorter generator run-times
- Greater efficiency of solar investment Long Service Life
AA Champion AGM batteries are designed and manufactured to provide the longest possible service life. In float applications (such as stand-by power supplies) the 6 and 12 volt batteries will achieve 3-to-5-year service life. Service life expectancies are based on a 20% capacity loss and 80% capacity remaining at the end of the stated service life
