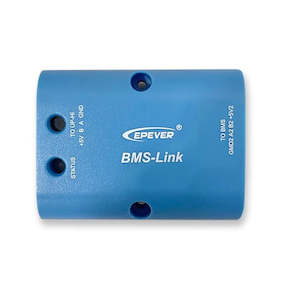

Epever BMS-LINK BMS Protocol Converter

BMS-LINK is an external BMS protocol converter featuring an independent MCU. Once connected to the UP-Hi and a lithium battery and with the "PRO" parameter configured via a remote meter or PC software, it translates protocols from various manufacturers into a standard format, enhancing flexibility in real-world applications. Unlike traditional built-in protocol converters, BMS-LINK offers greater adaptability and scalability, making it ideal for integrating lithium battery BMS with our all-in-one products and other devices. Features

- Independent MCU
- Dual RS485 port
- Supports multi-BMS protocols conversion
- Freely setting the protocol number
- Reliable protocol conversion and communication
- Simple installation and friendly operation

The port connected to the lithium battery is an isolated RS485 communication port, and the port connected to the all-in-one products is a non-isolated RS485 communication port. Specifications Parameters BMS Protocol Converter Input voltage

5VDC
(Powered by the UP-Hi connection port) Serial port baud rate

9600 Communication method

RS485 Connection port

RJ45 Working environment temperature

-20～ 55 ℃ Storage temperature

-35-70 ℃ Altitude

＜5000m Enclosure

IP30 Humidity range

＜ 95%(N.C.) Dimension (Length x Width x Height)

67x51x24.5mm Mounting dimension

67x41.2mm Mounting Holes

Φ3.2mm Net Weight

37.9g Manual

BMS-LINK Manual
