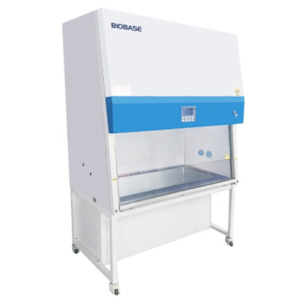

BIOBASE Cytotoxic

Biological Safety Cabinet is necessary equipment in the laboratory in the search of microbiology, biomedical, DNA recombinant, animal experiment, and biological products, especially in the occasion that operator need to adopt protective measure, such as medical and health, pharmacy, medical research. Our equipment provides a safety working environment which don’t have bacterial and dust in the process of bacterial culture.

Models:

Model

11224BBC86

11234BBC86

11244BBC86

External Size (W D H)

1087 760 2100mm

1380 760 2100mm

1877 760 2100mm

Internal Size (W D H)

910 600 630mm

1220 600 630mm

1700 600 630mm

Tested Opening

Safety Height 200mm(8n)

Max Opening

440mm(17")

Inflow Velocity

0.53±0.025m/s

Down Flow Velocity

0.33±0.025m/s

Exhaust Volume

347m³/h

465m³/h

648m³/h

Air Supply Filter

ULPA filter, efficiency >99.9995% for particle size at 0.12 pm

Exhaust Filter

ULPA filter: first exhaust filter :0.12pm efficiency 99.9995%;

HEPA filter: secondary exhaust filter :0.3pm efficiency 99.995%

Alarm

Noise

Water & Gas Tap

Abnormal airflow velocity; Filter replacement; Front window at unsafe height; High filter pressure alarm

≤67dB

Water Tap 1, Gas tap 1

20W 1

30W 1

40W 1

UV Lamp

Emission of 253.7 nanometers for most efficient decontamination

UV life indicator, UV timer

LED Lamp

12W 2

16W 2

16W 2

Illumination

≥1000Lux

Consumption

700W

900W

1300W

Waterproof Socket

Two, Total load of two sockets: ≤500W

Display

Control System

Humidity and Temperature

LCD display

Microprocessor

Humidity and temperature can be displayed on the control panel

Material

Work Area: 304 stainless steel

Main Body: cold-rolled steel with anti-bacteria powder coating

Front Window

Caster

Motorized, two-layer laminated toughened glassN6mm, anti-UV

Footmaster Caster

Power supply

AC220V±10%, 50/60HZ； 110V±10%, 60Hz

Standard Accessory

Base stand, Drain valve, Waterproof sockets 2, Remote control, LED lamp 2, UV lamp 1,

Water tap, Gas tap

Optional Accessory

Armrest, Formalin fumigation sterilizer, Infrared sterilizer, Airflow tester

Gross Weight

Package Size (W D H)

320kg

1240 910 2280mm

371kg

1540 910 2280mm

430kg

2050 910 2260mm
