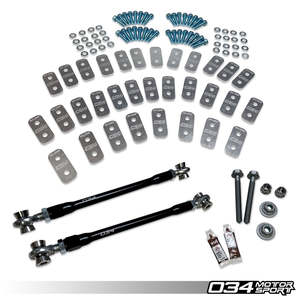

Dynamic+ Camber Toe Kit, Gen 1 & Gen 1.5 Audi R8 (4.2 V8 & 5.2 V10)

NOTE: Total range may vary based upon whether you are stock height or lowered. Measurements above were collected with 034Motorsport Dynamic Lowering Springs installed.

034Motorsport Motorsport Toe Links :

Replace your fixed, cast aluminum factory rear toe links on your Gen 1 & Gen 1.5 Audi R8 with this performance engineered adjustable set from 034Motorsport!
034Motorsport's Motorsport Adjustable Rear Toe Links facilitate simple and precise toe adjustments, making alignment changes for optimal track performance or even tire wear easier than ever. In addition, Motorsport Adjustable Rear Toe Links feature Aurora spherical rod ends for ultimate precision and durability - ensuring that proper suspension geometry is maintained during hard cornering.
Motorsport Adjustable Rear Toe Links were thoroughly tested on the street and track on 034Motorsport's Gen 1.5 Audi R8 4.2L V8 Development Vehicle before release. These adjustable toe links are direct replacements for the stock parts, and designed to be fully serviceable and rebuildable. 034Motorsport Motorsport Toe Links Features:

- Precise Toe Adjustment
- Eliminates All Bushing Deflection
- Improved Handling
- CNC Machined 6061-T6 Aluminum Tie Rod Bodies - Anodized Black for Durability
- CNC Machined Aluminum Rod End Spacers
- Aurora Spherical Rod Ends Featuring Self-Lubricating Teflon Race Lining
- Designed For Easy, Precise, On-Car Adjustability
- Direct Drop-In Replacements for Factory Toe Links RECOMMENDED ALIGNMENT:

034Motorsport R8 track use alignment specs; these specifications are optimal for a track-driven car with a very "loose" handling attitude and lively rear end that drives towards oversteer. Caution should be used with these alignment specs as they can cause the car to over-rotate and spin, especially during throttle-lift conditions while turning and trail braking:

Front: (Tires: 255/35/19 Michelin Sport Cup 2)

- Camber: -2.2 degrees each side (034Motorsport Camber Shims)
- Caster: 6.0 degrees each side (not adjustable)
- Toe: 2.2mm (toe in)

Rear: (Tires: 315/30/19 Michelin Sport Cup 2)

- Camber: -2.4 degrees each side (034Motorsport Camber Shims)
- Toe: 2.0mm toe in (034Motorsport Adjustable Toe Arms)

Our test vehicle is also running 034Motorsport Front and Rear Sway Bars, Dynamic Lowering Springs, and all 034Motorsport Spherical Motorsport line of products.
