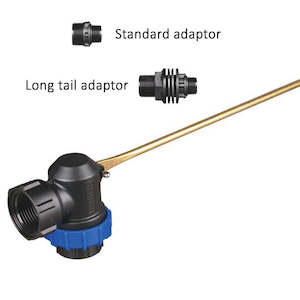

Hansen Super-Flo Ballcock

Each size comes with a 330mm long brass arm Max Pressure @ 20°C = 12 Bar
Metric Sizes BSPT (DN)
Imperial Sizes BSPT
Sizes and specifications Each valve is supplied with:

- Complete Plastic Valve Body
- Long Brass Arm
- 650mm Cord and Nuts
- Standard or Long Tail Glass Fibre Reinforced Nylon Adaptors Key features

- 29 psi, 188 l/min
- Designed with a 25mm (1") female thread on the valve outlet
- Supplied with 15, 20 and 25mm adaptors to fit a range of inlets
- Ability to attach to any number of poly pipe fittings ie portable troughs, irrigation systems, animal/feeder/vehicle washdowns, spray tanks
- Each valve will fit multiple thread and connection combinations
- Delivers high volumes of water quickly with unrestricted full flow
- “Slipper Fit Piston" design to reduce valve sticking
- Low operating pressure required reducing pumping costs and increasing flow
- Mini body design to enable easy installation
- Manufactured from strong, non corrosive UV Stabilised materials
- Available in Female and Male BSPT, NPT, ACME thread configurations
- Suitable for High/Low Pressure operations (from 0 Bar to 12 Bar)
- Variable open and close action preventing valve bounce and water hammer

Find more information on Hansen's website about the use of this product. Short-arm

Each size comes with a 203mm brass arm Max Pressure @ 20°C = 12 Bar
Metric Sizes BSPT (DN)
Imperial Sizes BSPT
Sizes and specifications Each valve is supplied with:

- Complete Plastic Valve Body
- Short Brass Arm
- Standard or Long Tail Glass Fibre Reinforced Nylon Adaptors Key features

- 29 psi, 188 l/min
- Designed with a 25mm (1") female thread on the valve outlet
- Ability to attach to any number of poly pipe fittings ie portable troughs, irrigation systems, animal/feeder/vehicle washdowns, spray tanks
- Each valve will fit multiple thread and connection combinations
- Delivers high volumes of water quickly with unrestricted full flow
- “Slipper Fit Piston" design to reduce valve sticking
- Low operating pressure required reducing pumping costs and increasing flow
- Mini body design to enable easy installation
- Manufactured from strong, non corrosive UV Stabilised materials
- Available in Female and Male BSPT, NPT, ACME thread configurations
- Suitable for High/Low Pressure operations (from 0 Bar to 12 Bar)
- Variable open and close action preventing valve bounce and water hammer

Find more information on Hansen's website about the use of this product.
