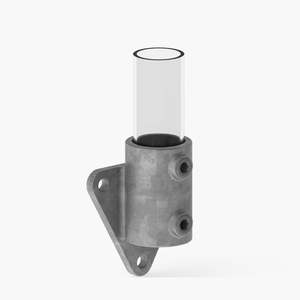

The side palm is designed for fixing pipe close to the wall, such as balustrades and guard rails. The pipe does not pass completely through the fitting.

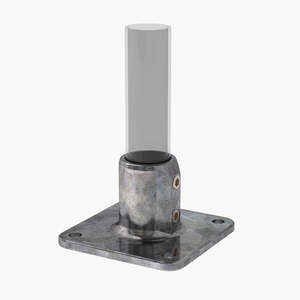

The 4 hole base flange is designed to suit balustrade applications. Four fixing points to offer better attachment and rigidity to the post and the short neck allows for a bottom rail to not pass the 100mm requirement from the ground.

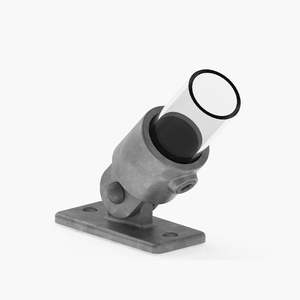

The swivel base is designed as a variable angle brace fitting for attachments to walls, floors and ceilings. This fitting is not designed to withstand lateral loadings.

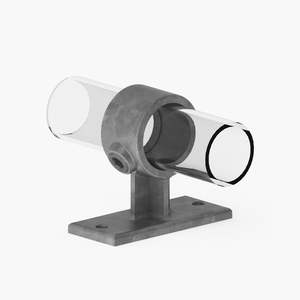

The handrail msupport is designed to carry handrails alongside walls. As an alternative it can also be used to attach pipe to floors, walls or ceilings.

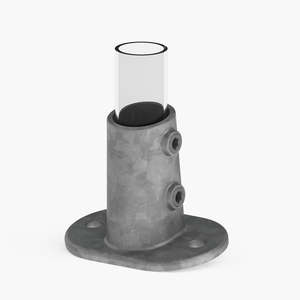

The railing base flange 0° to 11° is designed as a strong base flange to support vertical pots at nacute angel to the ground surface of up to 11°. Often used together with MasterKlamp product types 1.03 or 1.06 for the top rials and 2.11 for the mid rails.

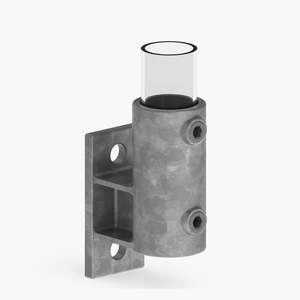

The vertical base railing support is designed so that pipe can be secured parallel to the fixing surface. Typical applications include guard rails. balustrades and flagpoles. The pipe does not pass completely through the fittings.

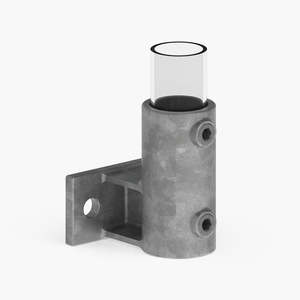

The horizontal base railing support is designed so that pipe can be secured parallel to the fixing surface. Typical applications include guard rails. balustrades and flagpoles. The pipe does not pass completely through the fittings.

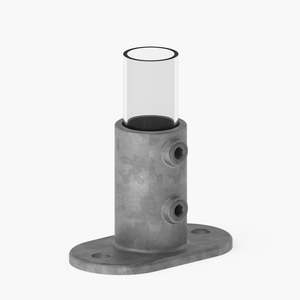

The railing base flange is designed as a strong base flange to support vertical posts. The fixing holes in the base should be set in line with the applied load to give maximum strength.

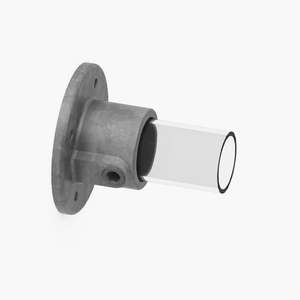

The base flange is designed as a fixation flange. Normally used as a wall or base flange where only positional fixing is required. It must not be used to support guard railings, balustrade or dependent structures.

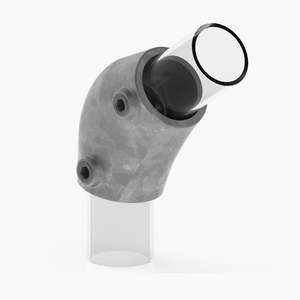

The variable elbow 30° to 60° is designed as an elbow joint that can be locked at any selected angle between 30° to 60°.

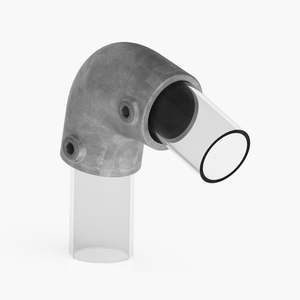

The variable elbow 79° to 101° is designed as an elbow joint that can be locked at any selected angle between 79° to 101°.

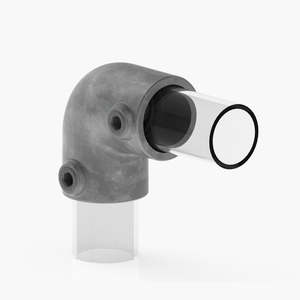

The elbow 90° is designed to give a 90° elbow joint. Normally used as the end joint for the top rail of guard railings.

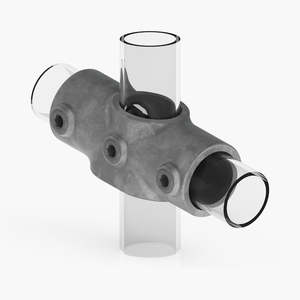

The two socket cross 0° to 11° gives a variable joint angle between two pipe lengths from 0° to 11°. Often used together with MasterKlamp product types 1.03 or 1.06 for the top rails and 4.05 for the rail base flange.

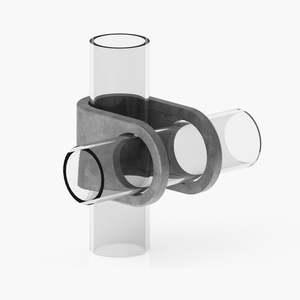

The clamp-on crossover 90° is designed to give a 90° crossover joint between two pipes. Because of the open-end construction it makes an easy add on fitting for existing structures.

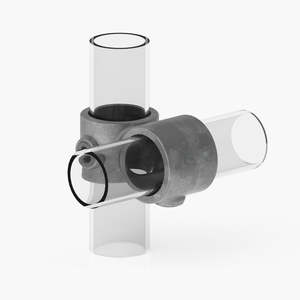

The crossover 90° is designed to give a 90° crossover joint. Normally used on guard rails and other structures where a continuous horizontal rail is required.

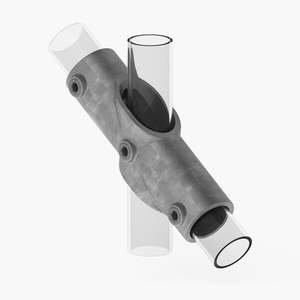

The two socket cross 30° to 45° is designed to give a variable joint between the upright and the middle rail. It can be used at any selected angle between 30° and 45°. Normally used together with MasterKlamp product type 1.07 for the top rail.

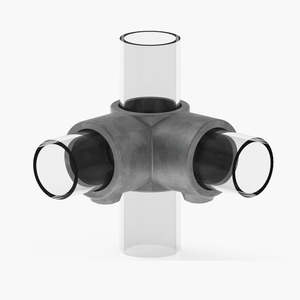

The three way mid corner is designed to give a 90° corner joint for the middle of any rectangular structure such as a guard or mid railing.

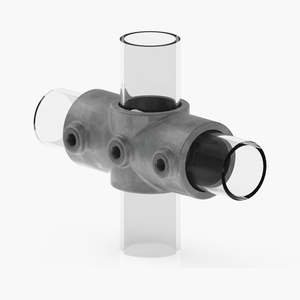

The two socket cross is designed to give a 90° joint between an upright and the middle rail of any rectangular structure such as guard rails. The upright should pass continuously through the fitting.

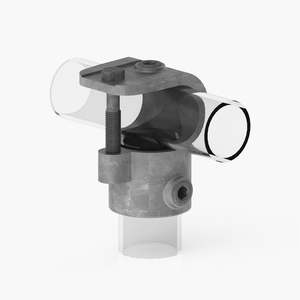

The clamp on tee is designed to give a 90° joint between two pipes. Because of the bolt construction it is an easy add-on fitting for existing structures.

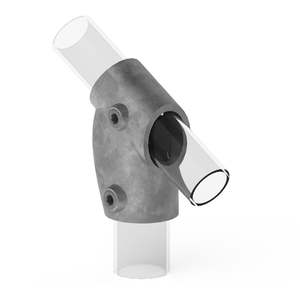

The adjustable tee 30° to 60° is used for struts and bracing in structures. It can be used at any selected angle between 30° to 60°. Normally used together with MasterKlamp product type 2.04 for the middle rail.

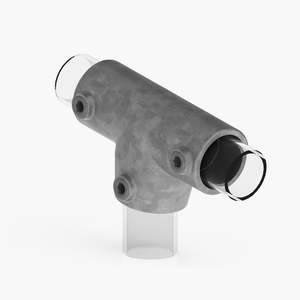

The long tee 0° to 11° allows two pipes to be joined at any selected angle between 0° to 11°. Often used together with MasterKlamp product types 2.11 for the middle rail and 4.05 for the rail base flange. this clamp can be used where a join is required between tow in-line pipes, as the sleeve holds two set screws.

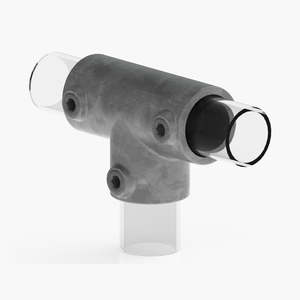

The long tee is designed to give a 90° butt joint between two pipes. This fitting should be used where a join is required between the horizontal pipes, as the sleeve holds two setscrews.

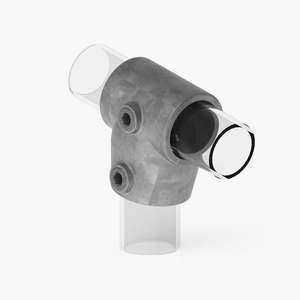

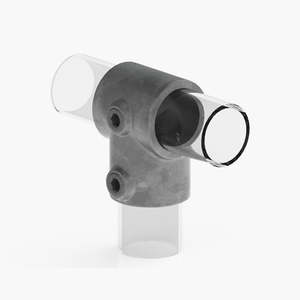

The short tee 0-11°, allows two pipes to be joined at any selected angle between 0° and 11°. No matter the complexity of the design, MasterKlamp enables quick, on-site construction.

MasterKlamp Pipe Clamp System is engineered for the simple, rapid assembly of tubular structures without the need for welding, bending or threading.
