Davies Craig, Digital Thermatic Fan Switch With 1/8" NPT Sensor, DC-0448
The Davies Craig Digital Thermatic Fan Switch Kit is designed for Thermatic Electric Fans, EWP® electric water pumps, and competitor fan models. This advanced digital fan switch allows for adjustable temperature control to optimize engine cooling, ensuring the engine operates within the ideal temperature range. The kit can be used for both 12V and 24V applications (with relay modifications for 24V) and includes an LED digital temperature display that shows the current and set temperatures in Celsius or Fahrenheit.
The sensor can be placed in the radiator fin section or directly into the coolant system (with the Temperature Sensor Adaptor Kit, Part #317-DC-0409). The switch activates the fan(s) based on the preset temperature, with an additional 10-second delay before starting a second fan (if applicable). This versatile kit works both thermally and when the air conditioning is in operation, ensuring optimal cooling performance.
Key Features:
Adjustable Temperature Range – Set temperature from 104°F to 230°F (40°C to 110°C).
Dual Fan Capability – Can operate 1 or 2 fans; second fan starts 10 seconds after first fan.
Works with EWP® and Thermatic Fans – Compatible with Davies Craig and competitor fans.
LED Digital Display – Clear reading of actual and set temperatures, displayed in Celsius or Fahrenheit.
12V/24V Applications – Use with 12V setups; for 24V, relays need to be swapped (not included).
Max Current: 40A per fan – Handles high-current fan applications.
Warranty: 1 year
Specifications:
Max Voltage: 12 to 27V (For 24V, relays need to be changed, not supplied in kit)
Relay Setup: Dual relay
Speed Control: Single speed, with a 10-second delay for second fan activation
Temperature Settings: 40°C to 110°C (104°F to 230°F)
Circuit Type: Pre-programmed microcontroller
Display: LED digital temperature display (Actual temp set temp)
Dimensions: 3-3/4" (95mm) x 2-9/16" (65mm) x 2-3/16" (56mm)
Waterproof: No (Not waterproof)
Sensor Wire Length: 142cm (Wire from switch: 112cm sensor connector: 30cm)

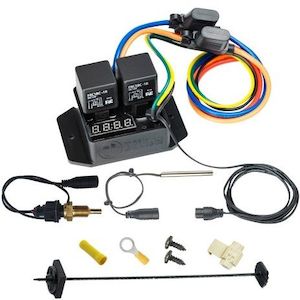

Kit Contents:
Digital Fan Switch (IP66)
Thermal Sensor Probe
Mounting Kit for Sensor Probe
1/8th NPT Thermal Sensor (DC-0468)
Red 6mm Ring Terminal
Blue 6mm Ring Terminal
Blue Wire Joiners (2)
Self-Tap Screws (2)
Instructions
Notes:
If used with EWP® electric water pumps, the kit will turn the pump on/off at the set temperature, not vary the speed.
For EWP® control, Part #8001 is recommended, as it manages both the EWP and Thermatic Fans.
