Davies Craig EBP23, 12V Electric Booster Pump Kit, 23LPM, DC-9050
The EBP23 is a 12-volt brushless, high-flow water pump with a capacity of 23 litres (6.08 gallons) per minute. It uses a magnetically driven motor, which means there are no brushes to wear out and no shaft sealing required. The pump’s design makes it suitable for various applications, including:
Car heater and LPG system booster
Solar pump applications
Water-cooled motorcycle and go-kart engines
Turbo air/water intercoolers
Household irrigation
The EBP23 is designed to complement your existing Davies Craig EWP (Electric Water Pump), or belt-driven mechanical water pump, improving your heater and/or cooling system. It can also assist with engine block cooling circulation. The EBP23 continually circulates coolant around the engine head, block, and bypass, offering high flow capacity and running independently of the engine speed. Additionally, it can be set to continue running after the engine shuts down using a timer or thermal switch (not supplied), preventing heat soak damage. Technical Specifications:
Motor: 12V Brushless
Operating Voltage: 9V to 15V DC
Max Current Draw: 1.1 Amps
Pump Design: Recirculating Centrifugal
Drive: Magnetic – No seals
Operating Temperature: -40°C to 120°C
Burst Pressure: 250 kPa (36 PSI)
Flow Rate: 23 L/min (6 gal/min)
Head Pumping Pressure: 0.25 Bar (3.62 PSI)
Self Priming: No
Weight: 364g (0.8 lbs)

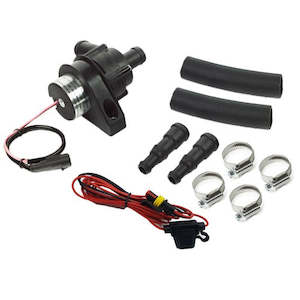

Max Head: 2.2M Kit Contents:
EBP23 Pump x1
EBP Adaptors Reducer (19mm to 12mm) x2
Adaptor Hose (19mm) x2
Hose Clamps x4
Mounting Brackets x1
Installation Instructions x1 Applications for the EBP23:
Circulation Pump for LPG Vehicles: The EBP23 improves coolant circulation through the engine block to prevent LPG injectors from icing up. It helps maintain an even engine temperature and improves overall engine cooling.
Heater Booster Pump: The EBP boosts heater performance during normal vehicle operation and allows continued heater usage when the engine is off (but the ignition is on).
Water Pump for Liquid-Cooled Motorcycle Engines: The EBP23 provides continuous coolant circulation independent of engine speed, ensuring effective cooling at all levels. It can replace the existing water pump or complement the system with an override switch, especially when used with the Digital Controller.
Multi-Purpose Pump: The EBP23 is ideal for various applications requiring consistent fluid flow, such as irrigation, camping, solar pumps, go-karts, and marine operations.
