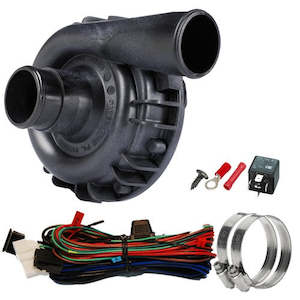

Davies Craig, EWP115 Nylon Kit, 12V 115LPM, Remote Electric Water Pump, Suit 2.0L-3.5L Engine, DC-8025

The EWP®115 (115 litres per minute) pump is suitable for small, medium, large, high-performance, and 4WD vehicles. This performance product enhances engine cooling control and capacity while providing more power, torque, and improved fuel economy.

It serves as a practical alternative to the mechanical belt-driven pump or can be fitted as an auxiliary pump. Unlike mechanical pumps, which run directly off the motor and sap engine power, the DC-8025 is hardwired into your electrical system, bypassing the engine and releasing up to 10kW (13hp) of extra power. Benefits of a Davies Craig EWP® over an Existing Mechanical Pump:

Coolant Circulation: Circulates coolant after engine shutdown to prevent hotspots

Increased Engine Power and Torque

Better Engine Temperature Control

Increased Cooling Capacity

Improved Fuel Economy

Extended Engine Life

Reduced Radiator Size and Coolant Capacity: Saves weight

Increase in Maximum Engine Speed

Suitable for Engines up to 2.0L-3.5L

The Davies Craig Electric Water Pump can be fitted independently, but for full benefits, it is recommended to use it with a digital controller, which gives you complete control over the engine’s running temperature. Alternatively, it can be wired into an aftermarket ECU, such as Haltech, LINK G4,., to control the water pump. Dimensions:

Height: 84 mm

Width: 128 mm

Inlet Opening: 38 mm Components:

8125 EWP115 12V Pump x1

Adapter Sleeves (3mm) x2

Wiring Harness x1

Hardware Bag x1

Hose Clamps x2

Instruction Sheet x1 Specifications:

Operating Voltage: 3V DC to 15V DC

Maximum Current: 10A @ 13V

Maximum Flow Rate: 115 L/min (30.38 gal/min) at 13V DC

Operating Temperature: -40°C to 130°C (-40°F to 284°F)

Pump Design: Clockwise Centrifugal

Pump Weight: 920 grams (2.03 lbs)

Pump Material: Nylon 66, 30% glass-filled

Burst Pressure: 500 kPa (72.5 psi)

Fits Hose Sizes: 32mm to 51mm (using included Adapter Sleeves)
