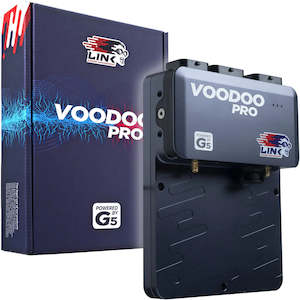

Link G5 Voodoo Pro ECU

The G5 Voodoo Pro delivers cutting-edge engine control with advanced functionality, high-speed communications, and unmatched flexibility. Designed for professional motorsport, it gives you control over port and direct injection, ignition, and more—all in one powerful ECU. Unrivaled Control & Capability

With 12 Injection, 8 Ignition, and 4 Multi-purpose (Inj/Ign/Aux) drives (24 total outputs), the G5 Voodoo Pro can manage:

Up to 12 cylinders or 6 rotors with sequential injection and direct spark

Up to 8 cylinders with staged injection and direct spark What's in the Box

G5 Voodoo Pro ECU

USB-C Connection Cable

WiFi Antenna

4m GPS Antenna (magnetic or adhesive mount)

USB-C and SMA Dust Covers

QuickStart Guide (A5)

Installer I/O Table (A3)

Link Stickers Built-in Features

WiFi with real-time PC Link connectivity

High-frequency GPS (up to 50Hz)

Dual onboard Digital Wideband Lambda Controllers

Dual E-throttle (Drive-by-Wire) control

Direct Injection (DI) capable on up to 12 injection drives (requires external driver box)

Dual Microcontrollers for high reliability

CAN Bus support with flexible file creation and sharing

Flexible Mounting Options:

Top-mount: Three M5/3⁄16" socket screws

Side-mount: Four M5 side points for custom bracket mounting

Note: Requires “A", “B" & “E" connector kits (sold separately). Inputs & Outputs Engine Control

12 Injector Pins

8 Ignition Pins

4 Multi-purpose Pins (Inj/Ign/Aux)

Control from 2 to 12 cylinders Auxiliary Outputs

Up to 30 Auxiliary Outputs (on a 4-cylinder sequential setup):

8 Dedicated Auxiliary Pins

4 Shared E-throttle/H-Bridge Pins

2 Shared Wideband Heater Pins

Up to 16 from unused Inj/Ign outputs

All Ignition & Auxiliary outputs are back-feed protected Sensor Inputs

14 Analog Inputs

10 Digital Inputs

4 Temperature Inputs

Dual Knock Inputs

2 Trigger Inputs

Dedicated Ignition Switch Input

Dual Internal Wideband Lambda Controllers

Dual E-throttle Inputs with Solid-State Disconnect Relays

5V Sensor Supply Communications & Connectivity

USB-C (cable included)

Built-in WiFi Access Point or connect to an existing network

Dual CAN Bus:

CAN 1 via dedicated CAN connector

CAN 2 via Header E

GPS with included antenna

Link PC Link Software:

Compatible with both G5 and G4X maps/logs

Open and work with both file types in one software

G4X maps can be imported into G5 Specifications

Length: 177.1 mm (6.97")

Width: 137.3 mm (5.40")

Min Height: 15.5 mm (0.61")

Max Height: 40.2 mm (1.58")

Weight: 795 g (28 oz) Supported Communication Protocols

USB-C

Wi-Fi

CAN

GPS

Uses Super Seal A, B & E plugs
CAN Bus 2 now has dedicated pins on Header E, freeing up two digital inputs.
GPS is activated simply by attaching the included antenna.
