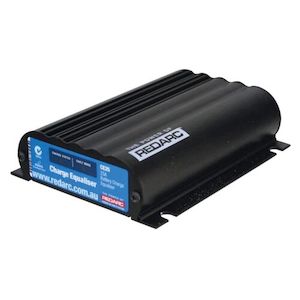

Redarc Charge Equaliser 25A Maximum – CE25

The Redarc Charge Equaliser 25A Maximum (CE25) is a versatile charge equaliser designed to balance the voltage across two 24V DC batteries, providing 12V power from the centre of the two-battery system. With a continuous rating of 25A, this unit ensures that both batteries remain equally charged, preventing one from discharging faster than the other and avoiding the need for irregular replacements.

The CE25 is ideal for situations where there isn’t enough space for an extra 12V battery. It operates within a voltage range of 9V to 33V and offers a compact design with dimensions of 135 x 60 x 200mm and a weight of 0.7kg, making it easy to install in limited space. Designed for durability and efficiency, this charge equaliser helps ensure that your 24V batteries are charged evenly and efficiently, extending their lifespan.

Key Features:

Voltage Range: Operates within 9V to 33V, providing consistent performance for various systems.

Continuous Rating: Delivers a maximum output of 25A, ensuring reliable and efficient power management.

Function: Specifically designed to equalise charge between 24V batteries while tapping 12V from the centre.

Battery Management: Prevents batteries from going flat at different rates, avoiding premature or irregular battery replacements.

Larger Peak Current Draw: Draws directly from the batteries for larger peak current draws, ensuring better power distribution.

Compact Design: 135 x 60 x 200mm and weighs only 0.7kg, ideal for installations with limited space.

Warranty: 1 year for peace of mind.

Specifications:

Voltage Range: 9V to 33V

Continuous Rating: 25A

Dimensions: 135 x 60 x 200mm

Weight: 0.7kg

Warranty: 1 year
