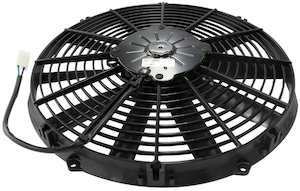

SPAL Thermo Puller Fan - 14" Straight 24V - 1295 CFM - 5.0Amps, (EF3549)

Upgrade your cooling system with the EF3549 SPAL 14" Thermo Fan, built for superior airflow and long-term reliability. This high-performance fan features a fully sealed, water- and dust-proof motor, making it ideal for rugged automotive, industrial, and motorsport applications. Designed as a puller fan, it efficiently draws air through your radiator to manage engine temperatures even in extreme conditions.

The straight-blade design provides maximum airflow—delivering 1295 CFM (2200 m³/h)—while maintaining a low amp draw of just 5.0A. The fan is individually balanced for smooth, vibration-free operation and longer service life, ensuring dependable cooling when it counts most.

Key Features:

Model: VA08-BP51/C-23A (SPAL #30101806)

Voltage: 24V

Airflow: 1295 CFM / 2200 m³/h

Amperage: 5.0 Amps

Blade Type: Straight

Flow Type: Puller configuration

Shroud Type: Finger Guard

Motor: Sealed against dust and water ingress

Balance: Individually balanced for long service life

Dimensions:

A: 366mm (14.41")

B: 382mm (15.04")

C: 191mm (7.51")

D: 331mm (12.99")

E: 62mm (2.44")
