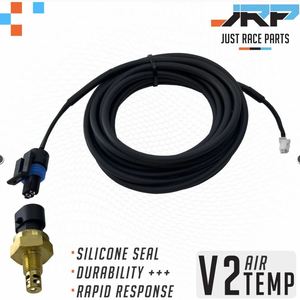

JRP IAT Intake Air Temp Sensor v2 1/8 PT
The JRP IAT Sensor V2 is a compact, fast-response intake air temperature sensor designed for performance and aftermarket ECU applications.
Developed from JRP’s original V1 sensor, the V2 features a smaller 1/8 PT thread , improved installation flexibility and approximately 30% faster response , allowing the ECU to react more quickly to changes in intake air temperature. Key Features
1/8 PT thread
Compatible with 1/8 NPT and 1/8 BSP ports
Approximately 30% faster response than JRP V1
Compact design for easier installation in tight engine bays
Brass body with exposed sensing tip
Operating temperature range: -40°C to 150°C
Same calibration curve as JRP V1 sensors
Same calibration as popular GM Delphi / AC Delco 213-192 & 213-190 sensors
Compatible with JRP 52mm IAT Gauges
Compatible with JRP 14-in-1 Multi Gauge systems
Suitable for many aftermarket ECU applications Important Fitment Note
JRP V2 sensors use a 1/8 PT thread , while the earlier V1 sensors used a larger 3/8 NPT thread.
If replacing a JRP gauge sensor purchased before December 2025 , the V2 sensor is electrically compatible, but a different threaded bung may be required. Ideal For
Performance, turbocharged and modified vehicles requiring fast and accurate intake air temperature monitoring.
