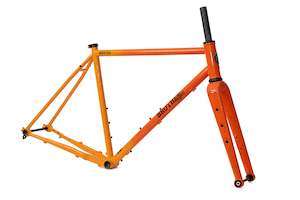

Brother Cycles Mehteh Frameset

Availability & Ordering
We list all framesets currently available from Brother Cycles as “in stock." While we have a few on hand, most orders will be fulfilled via special order with approximately 14-day delivery.

To confirm ETA or any other questions, get in touch:
shop@bicyclejunction.co.nz - 04 385 2362

All-terrain ready. Bikepacking approved.

The Mehteh (pronounced May-tay) is Brother Cycles’ ultimate steel gravel frameset—built for long days in the saddle, remote trails, and full-blown bikepacking missions. Crafted from durable Reynolds 725 heat-treated steel and matched with a feature-rich full carbon gravel fork, the Mehteh is designed to push well beyond the usual gravel limits.

With huge tyre clearance (700x50 or 650Bx2.2"), updated UDH-compatible dropouts, and mounts for bottles, bags, racks, and dynamo lighting, the Mehteh is a blank canvas for your biggest rides—whether that’s a weekend gravel loop or racing the Atlas Mountains. Key Features

Frame: Reynolds 725 heat-treated double-butted chromoly (ED coated)

Fork: Brother full carbon fork with tapered steerer

Updated UDH-compatible dropouts – run standard or SRAM Full Mount mechs

Tyre clearance: Up to 700x50c or 650Bx2.2"

Mounts: 3 x bottle cage, rear rack & mudguard, triple cage on fork legs

Cable routing: Full-length for derailleurs & brakes

Axles: 12x142mm rear, 12x100mm front (thru-axles included)

Brakes: Flat-mount disc, 160mm max rotors

Bottom Bracket: 68mm ISO threaded

Headset: 44mm (ZS44/EC44) – not included

Seatpost: 27.2mm - Clamp: 30mm (included)

Front derailleur clamp: 28.6mm

Chainring clearance: 1x up to 48t - 2x up to 50/34 - Triple up to 52/39/30

Weight (Medium): Frame 2.3kg - Fork 0.55kg

From gravel loops in the Alps to ultra races in Morocco, the Mehteh has proven itself time and again.
