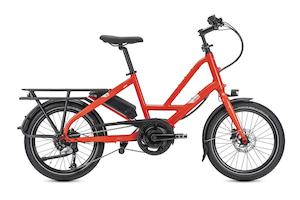

Tern Quick Haul D8
The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. Think of it as the multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse. Designed to Be Used—Often
The Quick Haul makes doing stuff by bike practical, easy, and fun—so you’ll reach for it just about every day. It’s designed to help you carry passengers and cargo with ease, and it’s a joy to ride. A compact, space-saving design simplifies storage and transport. The Carrying Capacity You Need
The short, low-capacity rear racks found on most city bikes limit how much you can do by bike (and make defaulting to a car more likely). The Quick Haul features an extra-long rear rack with a 50-kg (110 lb) capacity, so you can do a lot more—from hauling groceries to giving your kid a lift to school. Add an optional front rack to do both at once. Quick Haul Highlights
- Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
- Fits riders 160 - 195 cm (5’3" - 6’5"), and also riders 145 - 180 cm (4’9" - 5'11") when equipped with a shorter, 350 mm seatpost
- Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
- Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
- Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
- Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight
Specification
E-SYSTEM
MOTOR: Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 32 kph
BATTERY: Bosch PowerPack 400
DISPLAY: Bosch Purion
RANGE: 400 Wh: 54 - 105 km (33.6 - 65.2 mi)
CHARGER: Compact Charger, 100-240V, 2A
SPEEDS: 1 x 8
WEIGHT: 22.8 kg (50.3 lb)
FRAME SIZES:One size
DISTANCE: SEATPOST TO HANDLEBAR: 60 - 64 cm (23.6 - 25.2 in)
DISTANCE: SADDLE TO PEDAL: 68 - 110 cm (26.8 - 43.3 in)
SUGGESTED RIDER HEIGHT: 160 - 195 cm (63 - 76.8 in)
MAX GROSS VEHICLE WEIGHT: 150 kg (330.7 lb)
MAX RIDER WEIGHT: 120 kg (264.6 lb)
SHIFTER(S): Shimano Altus, 1 x 8 spd, trigger
REAR DERAILLEUR: Shimano Altus Shadow
CRANKSET: Tern custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL: Shimano 11-34T, 8 spd
BOTTOM BRACKET: Motor integrated
CHAIN: KMC for eBike, 8 spd
PEDALS: Urban with non-slip surface
