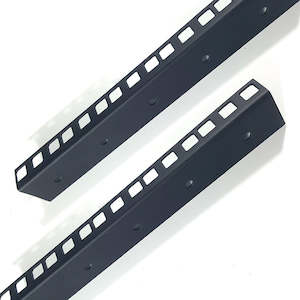

19 Inch Rack Mount Rail Brackets (Pair)

Use this rail either side of a cavity to create a standard 19 inch rack mount system. To line up with the mounting hole slots of your rack mount equipment, the cavity opening should be close to 487mm wide. Use our M6 captive nuts that clip into the square holes of the bracket to create M6 Screw mountings for your equipment. Each rack unit (RU) is 1.75" or 44.5mm so choose the length you need by the RU or length. If you need lengths longer than 16 RU, you can butt separate lengths together.

SOLD IN PAIRS (2 rails)

- Strong 2mm thick steel
- Square holes at 1/2 Unit (22mm) increments
- Matt black paint finish
- Can be cut to shorter lengths with a fine tooth hack saw
