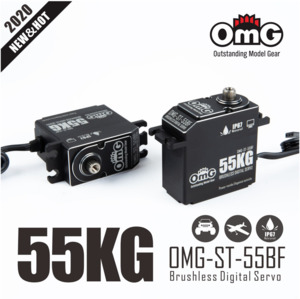

OMG 55kg Brushless Digital Servo - IP67 Water and Dust Resistant

OMG-ST-55BF Special desgin for 1:8 RC Vehicle and above 60CC large plane. Standard profile full metal brushless motor high voltage servo, full body in CNC precise engraving, matte cover, full steel gear,add PIN at Riveting point ,better in collision avoidance , waterproof, grogrammable. Competition Class Servo.
:
IP67 Water and Dust Resistant

Operating voltage：7.4-8.4V

Operating speed:

7.4V-0.105sec/60'

8.4V-0.095sec/60'

Dynamic torque:

7.4V-52kg-cm

8.4V-56.5kg-cm

Horn gear spline：25T

Size：40x20x41.5mm

Weight：88g

Limit angle:180±10°(500-2500μsec)

Rotating direction:180°(1000-2000μsec)

Operating travel :220

Neutral position :1520μsec

Maximum:≈180°(500-2500μsec)

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:315 mm
