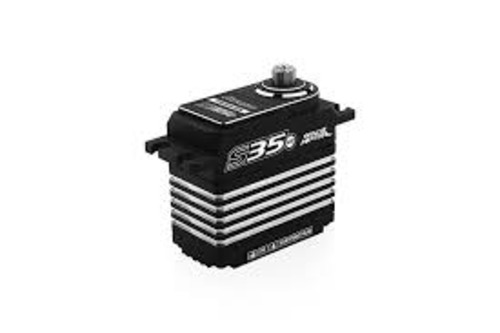

Power HD S35 V2 Standard 45kg 8.4V HV Brushless Metal Geared Servo

Size Conventionally sized servo names Standard Gear Material Titanium & Steel Servo Spline Count 25Tooth Waterproof Casing Yes Input Voltage Range 7.4V, 8.4V, 6V Case Material Aluminium Height (A) 44.4mm Body Length (B) 40.5mm Bottom to Under Mount (C) 28.7mm Top to Under Mount (D) 9.7mm Length (E) 54.2mm Width (F) 20mm Drive Motor Type Brushless Rotational Degrees 180° 6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline 29 6V Sec/60 Degrees Seconds per 60 degrees of rotation 0.115 7.4V Torque kg/cm 35 7.4V Sec/60 Degrees 0.098 8.4V Torque kg/cm 45 8.4V Sec/60 Degrees 0.085 Signal Type Digital
