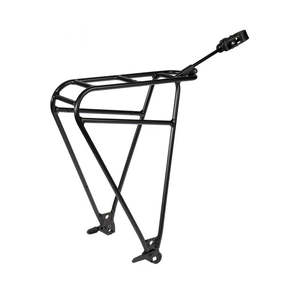

Ortlieb Quick Rack L

Anyone who wants to use their bike in a variety of ways, sometimes without a rack and sometimes with attachment options for bags and baskets, will be familiar with the problem of having a fixed rack on an otherwise clean bike. The Quick-Rack L from ORTLIEB definitely puts an end to tedious mounting and dismounting of the rack. Weighing just 605 grams, the touring rack can be mounted in just 15 seconds and removed in five seconds. Thanks to the Quick Release System, the quick change from a sporty bike to a commuter bike is done in no time at all.
With the optional Thru Axle M6 Connector accessory, mounting is also possible directly on the thru axle if there are no M5 or M6 mounting points on the frame.
The Quick Rack L offers attachment options for bags or baskets with the Top-Lock, QL 2.1 and QL 3.1 systems. The second attachment level also ensures that side panniers and a basket can be used at the same time.
The rack can be universally adapted to the bike thanks to the different strut lengths and can even be used on full-suspension bikes and carbon bikes. Three mudguards are available as optional accessories for different tire widths.

FURTHER FEATURES
Screw-on QL3/3.1 mounting elements
For frames with M5 or M6 threaded mounts
Incl. mounting kit; no additional mounting parts required
Preparation for optional rear light
Preparation for optional Thru Axle M6 connector

SPECIFICATIONS
Material: Aluminum
Wheel size: Max 28" x 50mm when mounted via thru axle / up to 2.9" x 3" when mounted directly or with Seat Stay Adapter
Weight: 605 g
Max. installation width: 195mm
Wide support surface with 10mm dia tube diameter
Max Payload: 20 kg
Color: Black
