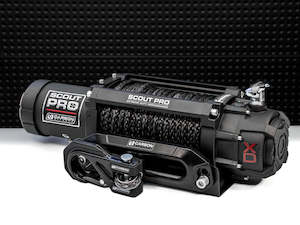

Carbon Scout Pro 12k lb - 12000lb Winch V3

12000 (5450) 5.6(1.7) 370 amps

- Part number: CW-12k
- Rated line pull: 12000 lbs, (5450 kg) single-line
- Motor: 12V DC 6.2HP series wound motor (24V option available)
- Remote Control: Remote Switch, 12ft (3.7m) lead.
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary.
- Gear Ratio: 216:1
- Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
- Brake: Full load automatic brake installed in the motor housing end plate.
- Fairlead: Multi-fit CNC billet alloy black anodised with laser hed logo
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 24m x 10mm diameter
- Drum Diameter/Length: 64mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching

Whats Included:

- 1 x Carbon 12K winch
- 24m x 10mm high strength synthetic winch rope
- 1 x Carbon winch hook (not applicable for BYO Hook version)
- 1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
- 1 x Long black battery cable
- 1 x Wireless remote
- 1 x Wired remote
- 1 x Multifit CNC Alloy fairlead (offset and standard position)
- 4 x Mounting bolts

- 3 x Allen keys
- 2 x Additional longer mounting bolts (fairlead mounting)
- 2 x Additional nuts for remote mounting solenoid box
- 1 x Hook hand saver strap
- 1 x Carbon lanyard
- 1 x Carbon stubby cooler
- 1x Installation manual
