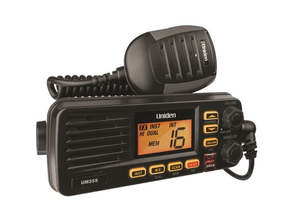

Uniden Um355 Fixed Mount Vhf - Black
Ideal for off-shore communications, the Uniden UM355 Splashproof VHF Marine Radio is a great communication tool on the water. The splashproof radio housing is certified to meet the worldwide JIS4 water-resistance specification. It has a rugged splashproof speaker microphone great for operating on the water.
The UM355VHF allows you to boost the transmission power from 1 watt to 25 watts for maximum transmission distance. The Extra Large LCD Display and Keypad is backlit for easy viewing at night or in low light situations. The microphone and controls are made out of non slip rubberised material making it comfortable and secure to handle.
Designed in Japan to offer outstanding performance in virtually all conditions and situations, this off-shore radio represents the highest level of quality and performance in marine radios. Uniden’s UM355VHF is durable and ideal enough for boating, marine, fishermen, commercial use and so much more.
Splashproof: Meets the world standard JIS4 level. Being defined as having no harmful influence by receiving a splash of water from any direction. Key Features
- VHF Marine In-Boat Radio
- Splashproof
- Rugged Splashproof Housing
- Large LCD Display with Brightness Control
- 1W/25W Transmitter Power Level Select
- Variable Squelch Level Knob
- Volume Control Knob
- Triple Watch Mode
- One-Touch Channel 16/67
- Programmable Memory & Scan
- International Channels
- Backlit Keys and Display
- Designed and Engineered in Japan
- Built for Rugged Australian and New Zealand Marine Conditions Specifications General Controls Volume-Pwr, Squelch Status Indicators Transmit power, Scan mode, Triple Watch mode, Dual Watch mode, Battery High, Battery low, USA, CAN, INT, Memory, Message, Weather band and Channel Display Display LCD Buttons 1W/25W/UIC, Channel UP, Channel DOWN, INST, WX-DUAL, 16/67-TRI, SIREN, and SCAN/MEM Connectors and Cables Antenna, accessory, and DC power Dimensions (H x W x L) 66 x 162 x 128 mm Weight 1.0 kg Supply Voltage Nominal 13.8V DC, negative ground (10.8 VDC to 15.6 VDC) Antenna Impedance 50 Ω nominal Microphone Rugged 2 kΩ condenser mic element with coiled cord Speaker 4.49 cm, 8 Ω Operating Temperature Range –15 °C to 55 °C Shock and Vibration Meets or exceeds EIA standards, RS152B and RS204C AS/NZS Approvals Type accepted under AS/NZS 4415.2:2003 of the Rules. Transmitter Power Output 1 watt or 25 watt (user selectable) Power Requirement 25 watts output: 6A@13.8V DC Modulation ±5 kHz deviation Hum and Noise Signal-to Noise 45 dB@1 kHz with 3 kHz deviation with 1000 Hz modulating frequency (nominal) Audio Distortion Less than 8% with 3 kHz deviation with 1000 Hz modulating frequency Spurious Suppression –45 dBm @ Hi, –55 dBm @ Lo Output Power Stabilization Built-in automatic level control (ALC) Frequency Range 156 to 158 MHz Frequency Stability ±1.5kHz @ –15°C to 55°C Receiver Frequency Range 156 to 163 MHz Sensitivity 0.25 μV for 12 dB SINAD (nominal) Circuit Dual Conversion Super Heterodyne PLL Squelch Sensitivity 0.2 μV Threshold Spurious Response 75 dB (nominal) Adjacent Channel Selectivity 78 dB @ ±25 kHz (nominal) Audio Output Power 2.5 watts (10% Distortion, 8 Ω load) Power Requirement 230mA @ 13.8V DC at squelched, 440 mA @ 13.8V
DC at maximum audio output IF Frequencies 1st 41.925 MHz
2nd 455 kHz
Owners Manual
Includes:
- 1 X Uniden UM355 Splashproof VHF Marine Radio (Black)
- 1 X DC Power Cable
- 1 X Accessory Cable
- 1 X Mounting Bracket & Knobs
- 1 X Microphone Hanger & Screws
- 1 X Flash Mount Bracket
2 Year Warranty
