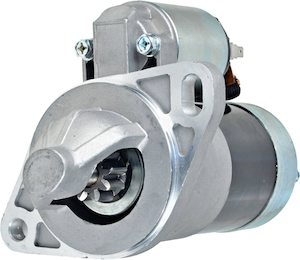

Starter for For Yanmar 3T72, 3T75, 3TN75, 3TNA72, 3TNA75, Various Models, YM1600

Specs:

Item Condition: Aftermarket Part
Unit Type: Starter
Voltage: 12
Rotation: CW
Teeth: 9
KW: 1.0
Starter Type: PLGR

YANMAR 23-25HP DSL ENGINES
Fits: JOHN DEERE 1435 LAWN MOWERS
JOHN DEERE 4100 SERIES TRACTORS
JOHN DEERE GATOR 850D, 855D UTV

Replaces OEM Numbers:

ANDRE NIERMANN 014235, 014625
ARROWHEAD (OEM) IMI239-001, ND228000-7471, ND9722809-747
ARROWHEAD (OLD) SHI0141
ARROWHEAD SND0413, 410-44027
ATLANTIC 1400-0123
BARSANCO 610-18426
CARGO 110417
DAEWOO S-8551
DELCO REMAN (EUROPE) DRS3259
DENSO 228000-7470, 228000-7471, 228000-7472
DENSO REMAN 9722809-747
DIXIE S-80090, S-8551
DIXIE NEW 243-12131
EMS 18426N
HC PARTS JS729
HITACHI S114-235, S114-235A, S114-235B, S114-625, S114-625A, S114-625B
J & N 410-44027, 410-52281
JOHN DEERE AM809215, AM879204, M809215, SE501858, TY25238
LESTER 18207, 18426
LUCAS ELECTRICAL EUROPE LRS01124, LRS02748
MINNPAR 57-1711
PIC 104-331, 104-331A, 190-488
RCP ST-18426
STENS 435-250
TAKEUCHI T12145077010
TUCKER ROCKY 49-5799, 495799
WAI 18426N
WILSON 91-25-1131, 91-29-5524
WILSON HD 91-25-1131, 91-29-5524
WILSON SMALL ENGINE 71-29-18426
WOOD AUTO STR23004, STR70388
YANMAR 119626-77010, 119626-77011, 119865-77010, 119865-77011, 121450-77010
- CRITICAL NOTE - Replaces 11-Tooth Original Hitachi @Center to Center Dimension Is Minimum Distance
- VOLT 12
- POWER 1.200 kw
- HP 1.609
- CONDITION New
- ROTATION DIRECTION Clockwise
- ELECTRIC STARTER TYPE Permanent Magnet Gear Reduction (PMGR)
- NUMBER OF TEETH 9
- GEAR OD 1.157"
- GEAR OD 29.400mm
- LENGTH 209 mm
- LENGTH 8.228"
- MOUNT HOLE ID 1 11.500mm
- MOUNT HOLE 1 TYPE Unthreaded
- MOUNT HOLE 2 TYPE Slotted
- REGISTRY OD 3.500"
- REGISTRY OD 88.900mm
- WARRANTY 1 Year
- MOUNTING EAR DISTANCE 1 126mm
- MOUNTING EAR DISTANCE 1 4.961"
