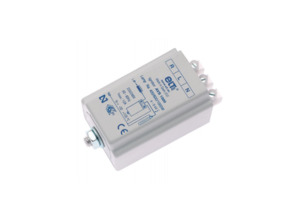

Ignitor Arrancador Avs 1000 Vsyhm 600-1000w

SKU: 3210211 Category: Ignitors Tags: ELT, ignitors

- Additional information

Ignitor for high pressure sodium and metal halide

Model: AH 1000

Ref. No.: 3210211

Lamp: Na 400, 600 y 1000W

Switch-on voltage: ≤198 V

Switch-off voltage: > V

Main voltage: 198 ÷ 264 V

Peak voltage: 4 ÷ 5 kV

Impulse width at: ≥0.9 2.5kV – μsec.

Pulse No. per cycle: 4 N.º

Impulse position: 60-90 240-270 °e

Load capacitance: 200 pF

Losses: 6 W

Max.temp. at tc point: 105 °C

Minimum ambient temp.: -30 °C

Set Weight: 0.314 kg Additional information Weight 0.31 kg Related products
