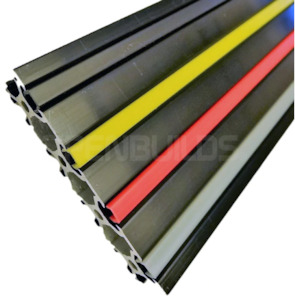

Place your personal design touch on your project by incorporating these sleek Slot Covers or use them to hide wires along the V-Slot channel and cover them up for a finished look.Product Feat ures - Prevents dust or shavings from accumulating in the V-Slot channel- Cut to length or join end to end t...

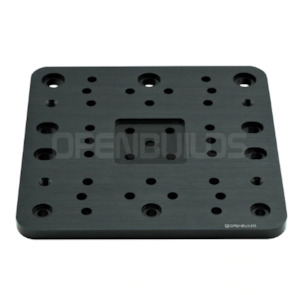

A wide stance capable of housing up to 6 wheels creating an extremely stable gantry. A key component in belt & pinion as well as lead screw transmissions. This plate has r ecessed holes for professional flush mounts and t apped holes to facilitate a 90° connection between any two XLarge Gantry Plat...

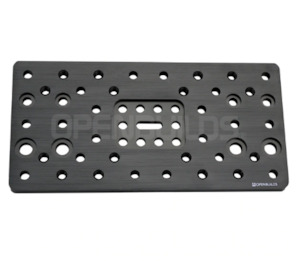

Expanding on the popular C-Beam gantry plate, this Double Wide version can host up to 8 Mini V Wheels for an exceptionally stable gantry. Elongated to provide even more mounting surface, this Gantry Plate is p rofessionally milled. Product Features - Extra long- C-Beam and V-Slot 20x80mm compatible-...

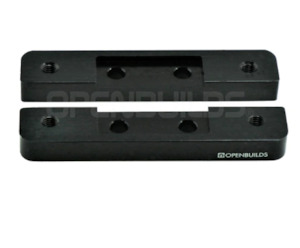

A key component used to attach C-Beam Gantry Plates to a C-Beam Shield. Pre-threaded holes and center recess allows for flush mounting a top plate. Each set contains 2 riser plates.Pro-Tip: C-Beam Gantry Plate requires 1 set of C-Beam Riser Plates and the Double Wide C-Beam Gantry Plate requires 2 s...

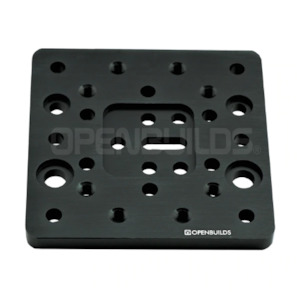

The C-Beam Gantry Place accommodates up to 4 Mini V Wheels. Easily configured to station wheels inside C-Beam Linear Rail track for a compact gantry cart footprint, or a lternate the mounting on the slimmer V-Slot Linear Rail to position wheels on the outermost portion of the rail. Product Features ...

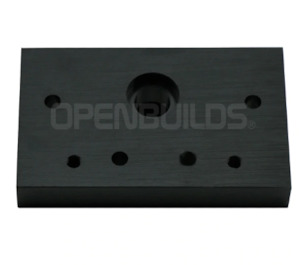

Interchangeable mount allows for easy attachment of a motor to C-Beam Linear Rail. Includes bearing recess typically used in lead screw transmission and additional countersunk holes for flush mounts to make this plate a great choice for your project. Product Features - C-Beam Linear Rail compatible-...

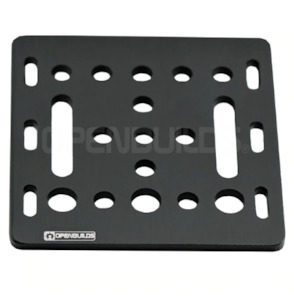

Put some motion in your build with a precision milled gantry plate designed for any 20mm side of V-Slot Linear Rail.Product Features - Quick assembly of motion system- Fold-through slots allow for easy belt threading- 5mm slots suitable for spacers to accompany a 90 degree belt mount on either side ...

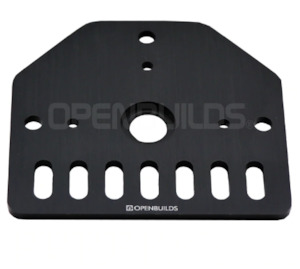

Pair this Threaded Rod Plate for NEMA 23 stepper motor series with a V-Slot rail and a matching length Lead Screw for a strong linear actuator ready to be used.Product Features - V-Slot and OpenRail compatible- Center recess lead screw openingWhat is Included - 1 x Threaded Rod Plate – NEMA 23Prod...

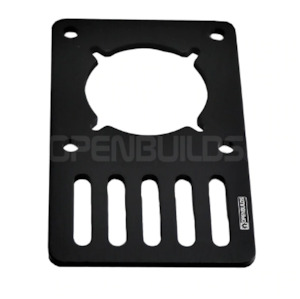

Easily mount a NEMA 23 Stepper motor onto any plate or V-Slot to create a belt & pinion or any other type of actuator. Product Features - Slots to easy tension adjustment- Multiple holes to accommodate and design Product Specifications - Size: 60mm x 90mm - Thickness: 3mm- Material: 6063 - T6 Alumin...

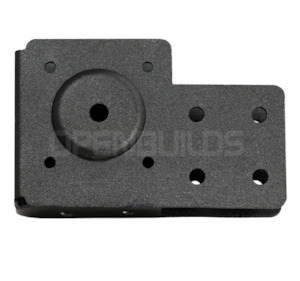

The ultimate end mount to build your horizontal and/or vertical NEMA 17 belt driven linear actuator. Stamped and folded aluminum mount is best suited for 20X40mm V-Slot Linear Rail.Product Features - Variable mounting options- Fits 20mm Linear Rail- Professionally finished for long lasting performan...

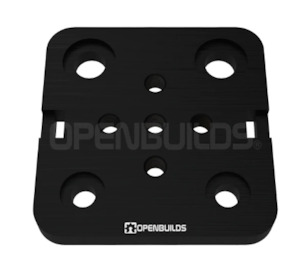

The e asy to mount with 5 pre-threaded M5 mounting holes. Belt loop notches allow for quick connection of timing belt. There are t wo oversized recessed holes for flush mounting and adjusting eccentric spacers. Quick orientation with secondary holes designated to lock wheels when attaching your V-Sl...

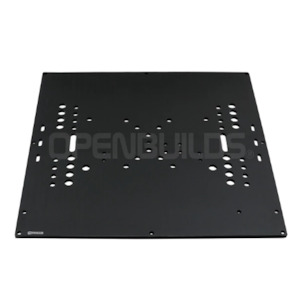

A Large format universal mounting platform, s uitable for heated beds and any applications requiring larger mounting surface. Compatible with all sizes of V-Slot Linear Rail. Product Features - Professionally crafted for endurance- V-Slot Linear Rail compatible- Maximum flexibility in mounting place...

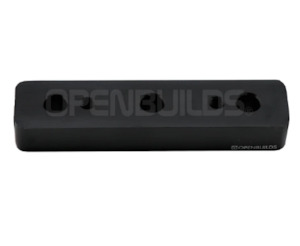

This allows you to raise the V-Slot Gantry Plate up away from the rail 12mm so that you can run transmission components such as a Belt Drive or Threaded Rod underneath the V-Slot Gantry Plate.Product Features - Adds transmission spacing to any V-Slot Liner Actuators- Compatible with multiple OpenBui...

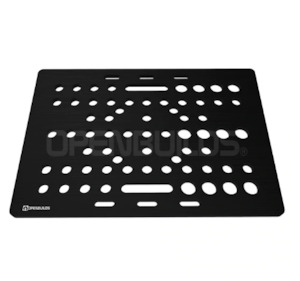

Our universal gantry plate suitable for many build designs. 3D printing extruders, diode lasers, plasma heads are just some of the possibilities.Product Features - Quick assembly of motion system- Variety of hole sizes designed for belts, screws and other attachment options.- Maximum flexibility in ...

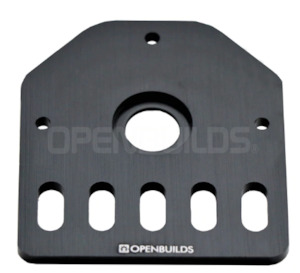

Pair this Threaded Rod Plate for NEMA 17 stepper motor with a V-Slot rail and a matching length Lead Screw for a strong linear actuator ready to be used.Product Features - V-Slot and OpenRail compatible- Center recess lead screw openingWhat is Included - 1 x Threaded Rod Plate – NEMA 17Product Spe...

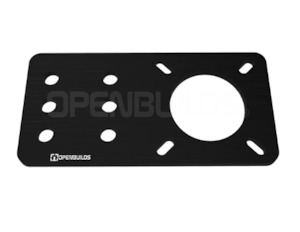

Easily mount a NEMA 17 Stepper motor onto any plate or V-Slot Linear to create a belt & pinion or any other type of actuator.Product Features - Slots to easy tension adjustment- Multiple holes to accommodate and designWhat is Included - 1 x Motor Mount Plate – NEMA 17 Stepper MotorProduct Specific...

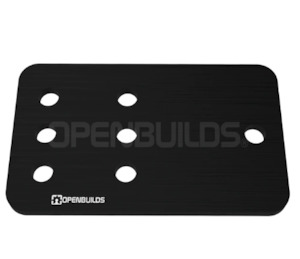

This plate gives you a mountable yet movable location for a Smooth Idler Pulley. This works great as it allows you to easily tension your belt. Product Features - Quick assembly of motion system- V-Slot Linear Rail compatible Product Specifications - 6063 - T6 Plate- Thickness: 3mm- Anodized aluminum- Color: Black Part Details - 1 x

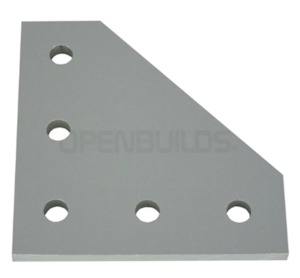

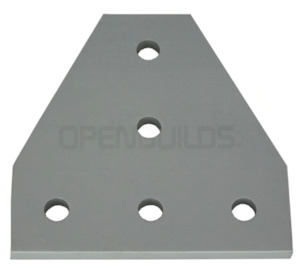

Strong external fastening method that can be used to connect 2 or more Linear Rail, meaning i nfinite positioning possibilities for maximum flexibility in your designs. Hole placement is designed for perpendicular joints. These plates m ount easily with 10mm Low Profile M5 Screws (sold separately). ...

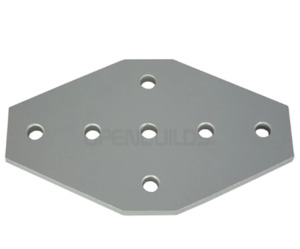

These s create a junction with up to 4 Linear Rail and c an be repositioned to suit your application. They c onnect easily with 10mm Low Profile M5 Screws (sold separately). Product Features - Thick and sturdy for long lasting performance- V-Slot Linear Rail compatible Product Specifications - Size:...

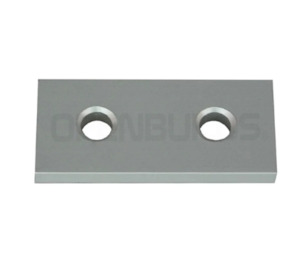

Strong external method used to connect up to 2 V-Slot Linear Rails. These can be positioned to suit the application. Holes are spaced 20mm apart connect to V-Slot Linear Rail easily with 10mm Low Profile M5 Screws (sold separately). Product Features - Thick and sturdy for long lasting performance- V...

Strong external method used to connect up to 3 V-Slot Linear Rails. These c an be positioned to suit the application. Holes are spaced 20mm apart connect to V-Slot Linear Rail easily with 10mm Low Profile M5 Screws (sold separately). Product Features - Thick and sturdy for long lasting performance- ...

Square up joints with these 90 degree precision plates. These plates m ount externally to the V-Slot Linear Rail with 10mm Low Profile M5 Screws and M5 Tee Nuts (sold separately). Product Features - Thick and sturdy for long lasting performance- V-Slot compatible Product Specifications - Size: 40 x ...

With several options to choose from, Tee Nut Makerlinks are the quickest way to assemble your build, giving you ample flexibility on the design yet maintaining a strong connection between Linear Rails.Product Features - Create a hidden 90 degree connection between V-Slot Linear Rail- Rounded corners...

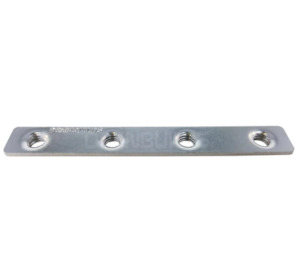

Quad Tee Nuts Makerlinks make a strong end to end connection on any Linear Rail while still allowing Wheels to run along the channel.Product Features - Extend to any lengths- Rounded corners for easy sliding- Compatible with V-Slot and C-Beam Linear RailsWhat is Included - 10 x Quad Tee Nut Makerlinks- 40 x M5 Set Screws
