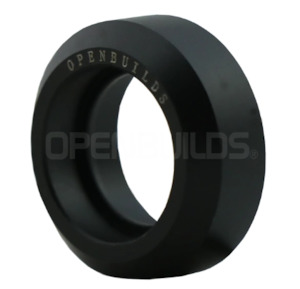

Solid V Wheel

Precise smooth motion for light to medium duty applications ie : 3D Printer. The f lat surface with a V shaped outer edge allows the wheel to center ride in the track of V-Slot and C-Beam Linear Rail. This f lat profile is designed to work effortlessly with a belt on a belt and pinion system as well as lead screw and belt driven systems. Product Features

- Long lasting solid construction
- Ultra smooth finish for precise motion
- Flat wheel surface for belt travel (belt & pinion option)
- Self-centering and s elf- lubricating
- Even distribution of weight
- Easily assembled and maintained Product Specifications

- Rockwell hardness: M80
- Compression strength: 63MPA
- OD: 23.90mm
- ID: 15.974mm /- 0.026mm
- Thickness: 10.23mm
- Material: Delrin
- Color: Black Part Details

- 1 x (cover only)
