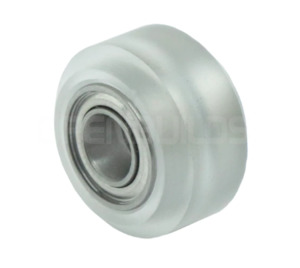

Xtreme Mini V Wheel Kit

Complete kit includes all assembly hardware. A heavy-duty alternative to Delrin Wheels. Suitable during applications where substantial force and weight are introduced into the system. Compact in size, these Xtreme Mini Wheels are optimal for builds that require the wheel to ride inside the C-Beam Linear Rail channel. Perfect for when additional accuracy is needed and less compression than in the Delrin is desired. Product Features

- Heavy duty
- Strongest wheel type with the highest wear ratios
- Withstand prolonged usage
- Self-centering and self-lubricating
- Easily assembled Product Specifications

- Rockwell hardness: M75
- Compression strength: 86MPA
- OD: 15.23 mm
- ID: 9.974 mm /- 0.026mm
- Thickness: 8.8 mm
- Material: Hardened poly-carbonate
- Color: Clear
- Recommended Lubricant: Silicone Part Details

- 1 x Xtreme Mini V Wheel
- 2 x Mini V Bearings
- 2 x Mini V Wheel Precision Shim
- 1 x M5 Nylon Lock Nut
