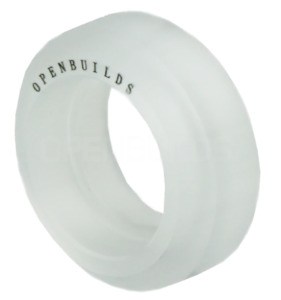

Xtreme Solid V Wheel

A heavy-duty alternative to Delrin Wheels. Suitable during applications where substantial force and weight are introduced into the system. Perfect for when additional accuracy is needed and less compression than in the Delrin is desired. The f lat profile is designed to work effortlessly with a belt on a belt and pinion system as well as lead screw and belt driven systems. Product Features

- Heavy duty
- Long lasting solid construction
- Ultra smooth finish for precise motion
- Flat wheel surface for belt travel (belt & pinion option)
- Self-centering and s elf- lubricating
- Even distribution of weight
- Easily assembled and maintained Product Specifications

- Rockwell hardness: M75
- Compression strength: 86MPA
- OD: 23.90mm
- ID: 15.974mm /- 0.026mm
- Thickness: 10.23mm
- Material: Polycarbonate
- Color: Clear
- Recommended Lubricant: Silicone Part Details

- 1 x (cover only)
