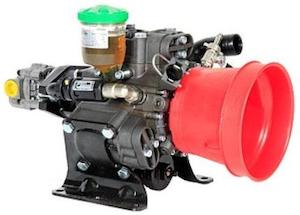

Annovi Reverberi AR903 diaphragm pump hydraulic motor driven 91 lpm 50 bar (725 psi)

Annovi Reverberi AR903 diaphragm spray pump

Hydraulic motor driven

VDR50 control valve

Hydraulic data:

11 kW max continuous

140 bar (2030 psi) max continuous

Performance:

91.9 lpm (24.3 gpm)

50 bar (725 psi)

550 rpm

9.1 hp requirement

Features:

3 diaphragms

60 degrees C max temperature

Self-priming

OK to run dry

Materials:

Annodised alumimium body

NBR diaphragms

Pump ports:

3/4 inch BSP(M) outlet port

40 mm inlet hose tail

Oil type:

SAE 30 engine oil
