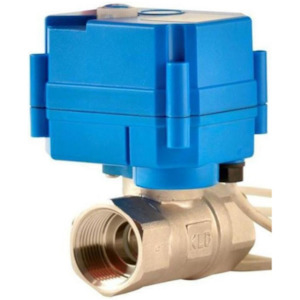

Ketta BASM series electric ball valve BSP(F) threads 10 bar (145 psi) 12-24v AC/DC - all sizes

- stainless steel capacitor
- NC 10 bar
- 12~24v AC/DC
- min. 30 second charge
- optional return position: open or closed
More:
The BAS series electrically actuated ball valves automatically the valve to its original position when de-energised
The compact design works in the same way as a solenoid valve and can be considered ‘fail safe’ once the storage capacitor has charged up (approx 60 seconds)
Unlike a solenoid valve the BAS can take full pressure in either direction, eliminating the need for a check valve
All sizes come with a manual override
Threads conform to ISO 7.1 Sealing Threads
Applications:
- dirty or contaminated fluids, viscous fluids,
- some corrosive fluids (check compatibility)
- gravity feed applications, anti water hammer slow close function
- IP67 corrosive resistant enclosure
- low power/solar/battery operated circuits (12-24v AC/DC)
