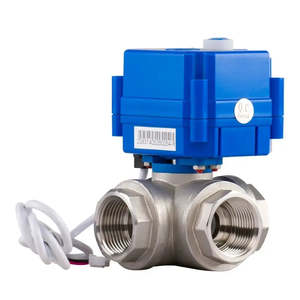

Ketta BASM3 series 3 way electric stainless steel ball valve 12-24v AC/DC (auto return) BSP(F) threads - all sizes

- L port configuration only
Sizes: 1/2 inch to 3/4 inch BSP(F)
Body: 316 Stainless Steel
Seat: PTFE
Pressure: 10 bar (145 psi) max
Media temperature: 0°C to 90°C
Actuation: capacitor return low voltage
Ketta BASM3 series 3 way electric ball valve 12-24v AC/DC (auto return) BSP(F) threads - all sizes - with L port configuration only
The 3 way L port BAS series electrically actuated ball valves automatically the valve to its original position when de-energised
The compact design works in the same way as a solenoid valve and can be considered ‘fail safe’ once the storage capacitor has charged up (approx 60 seconds)
Unlike a solenoid valve, the 3 way series BAS can take full pressure in either direction, eliminating the need for a check valve
It has a wide range of industry applications namely; dirty or contaminated fluids, viscous fluids, some corrosive fluids (check compatibility), gravity feed applications, anti water hammer slow close function, IP67 corrosive resistant enclosure, low power/solar/battery operated circuits (12-24v AC/DC)
Threads conform to ISO 7.1 sealing threads
