Ketta BFDDA series pneumatic air operated ductile iron butterfly valve (double acting) 16 bar (232 psi) EPDM seals - all sizes

Ketta BFDDA series pneumatic air operated ductile iron butterfly valve (double acting)
16 bar (232 psi)
Size 50 mm to 600 mm
Body FBE coated ductile iron
Seat EPDM or FKM
Disc 316 stainless steel
Pressure up to 16 bar (depending upon size)
Actuation double acting pneumatic
EPDM seals (optional FKM Viton type)
The BFD (supersedes the BFK) series has a ductile iron body, 316 S.S disc, EPDM seat (as standard but also available in FKM) and a double acting pneumatic actuator making it suited to a wide range of industrial applications
These are Watermark, Standards Mark and WSAA (Water Service Association of Australia) certified (with and EPDM seat)
These wafer butterfly valves will fit all standard flanges and are operated by a high quality double acting (rack and pinion design) anodised aluminium pneumatic actuator
The unique bonded cartridge design of the butterfly valve gives it a longer life span, allows vacuum to be run through it and enables the seat to be replaceable if ever the need should arise
Designed and manufactured in accordance with API609, inspected and tested in accordance with API598
Common applications include water trucks, irrigation, irrigation and other industrial applications
If sizes above 600 mm or extension shafts are required please
Please note that different sizes have different numbers of guide holes on the outside of the valve

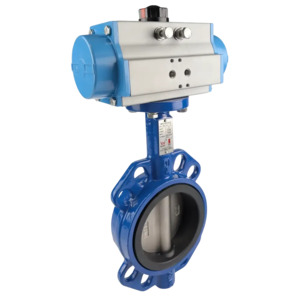

The above is a photo of just one size so yours may look different depending upon the size
