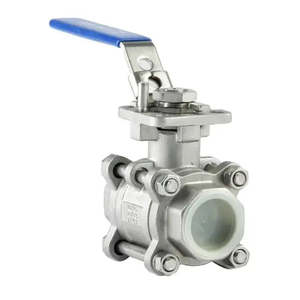

Ketta BLS series 316 stainless steel ball valve (lever operated) -20°C to 180°C 63 bar (914 psi) - all sizes

Ketta BLS series 316 stainless steel ball valve (lever operated)
Media temperature range -20°C to 180°C
Rated media pressure range 63 bar (914 psi)
High performance 3 piece full bore 316 Stainless Steel ball valve with BSP (or NPT) threaded connections
Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration
Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator
Reinforced PTFE seats for temperatures up to 180°C
This ball valve has a lockable lever operation so it can be locked in one position if needed
Typical applications include water treatment, chemical, marine, petrochemical and general industry
Length to DIN3202-M3, Threads to ISO7/1 and mounting pad to ISO5211
Watermark valves available upon request, contact Sales for more information
Watermark License Number WMK26529 approved to WMTS 012:2018
Choose between BSP (by far the most common) or NPT threaded ends
Size 1/4" to 4" BSP or NPT
Body 316 Stainless Steel 3 piece
Seat Reinforced PTFE
Pressure 63 BAR
Temperature -20°C to 180°C
Actuation Lockable Lever or Gear Box
Watermark Approved
