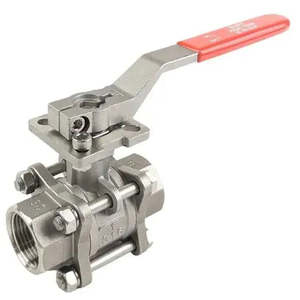

Ketta BLSHT series stainless steel ball valve (high temperature to 220°C) 63 bar (914 psi) - all sizes

Size 1/2 inch to 4 inch BSP
Body 316 Stainless Steel 3 piece
Seat PTFE 50% SS316
Pressure 63 bar (914 psi)
Temperature -20°C to 220°C
High performance 3 piece full bore 316 Stainless Steel ball valve with BSP threaded connections and PTFE 50% SS316 seats and a FFKM oring for temperatures up to 220°C
This valve features a self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration
The pre drilled metric hole on ISO5211 direct mounting pad minimises any thermal transfer from valve to actuator
This features a heavy duty lockable handle which allows for the handle to be locked in one position if required
It does not have a sliding tab like other lockable handles as these are usually used in high temperature applications where contact time with the handle should be minimal
Suitable for applications where a higher temperature demand exists that is outside the capability of a standard RPTFE ball valve
Length to DIN3202-M3, Threads to ISO7/1 and mounting pad to ISO5211
If you are actuating these ball valves in a high temperature application we recommend using a pad extension to protect the actuator from thermal transfer
Also available in NPT, Socket Weld, Butt Weld and Triclover
