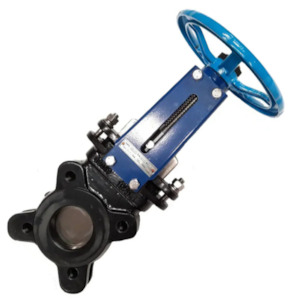

Ketta KGDHWN series cast iron knife gate valves 10 bar (145 psi) max and 0°C to 80°C media - all sizes

Sizes: 50 mm to 300 mm
Body: cast iron
Seat: NBR
Gate: 316 stainless steel
Pressure: 10 bar (145 psi) max
Actuation: hand wheel rising spindle
Ductile iron wafer knife gate valve with resilient seat (NBR) and 316 stainless steel gate
Operated by a rising stem hand wheel and suitable for up to 10 BAR media pressure
Great for effluent, sewerage treatment plants and other applicable media (not recommended for abrasive media which will sit in seats)
Suits table E and AS4087 PN16 flanges
Unique design allows for a long life and low maintenance once installed
Accepts uni-directional flow. Other flanges available upon request
Designed to JB308, face to face according to DIN3202-K1 and tested to ISO5208
