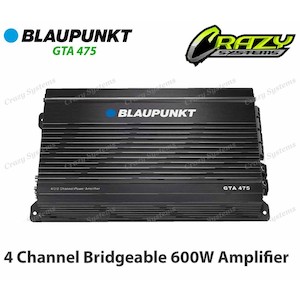

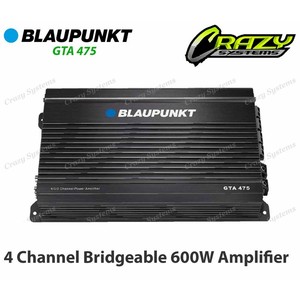

BLAUPUNKT GTA 475 4 Channel Bridgeable 600W Amplifier

Blaupunkt - (GTA 475) 4/3/2 600W CHANNEL POWER AMPLIFIER
Amplifier Class: Class AB
No of Channel: 4/3/2
No of PCB Layer: 2
Max Total Power: 160W x 4
RMS Power (4 ohms): 75W x 4
RMS Power (2 ohms): 120W x 4
Max Total Power Bridged (4 ohms): 240W x 2
Frequency Response: 10Hz - 50kHz
Signal-To-Noise Ratio: =>96dB
Voltage Supply: 11- 16V DC
Idling Current: 0.8A
Gain Adjust: 200mV - 6V
Crossover Type: Variable LPF
Crossover Frequency (Low Pass Filter) : 32Hz - 250Hz
Crossover Frequency (High Pass Filter) : 20Hz - 250Hz
Crossover Slope: -12dB/oct
Hi-Volt Input Level Control: 3V
Lo-Volt Input Level Control: 200mV - 6V
Total Harmonic Distortion
