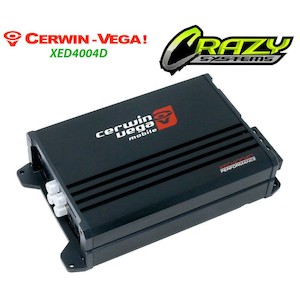

Cerwin Vega XED4004D 400W 4/3/2 Channel Class D Car Amplifier

XED4004D - 4 Channel Amplifier 400W MAX Power
:
Latest High-Efficiency Class D Topology. Compact Size with Ambient backlit logo. RCA “Pass Thru" output for easy system expansion. Fully Variable Crossovers (12dB per octave). Handles HI and LO level input to 12V. 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 Ch mode. Proprietary Vega Bass Boost EQ Up To 12dB.
Features:
400W MAX Power
4 Channel Amplifier
90W x 4 @ 2Ω RMS
60W X 4 @ 4Ω RMS
170W x 2 Bridged
Crossover: 35Hz~250Hz (LP/HP)
Frequency Response: 10Hz~30KHz
Dimensions: 6.3"x 4.7" x 1.8" ( 160.02mm x 119.38mm x 45.72mm )
Amplifier 4 Channel
Amplifier Power 400 W MAX
MAX Power Rating 400 W
RMS Power(2Ω) 90W x 4
RMS Power (4Ω) 60W X 4
RMS Bridge (mono 4Ω) 2 x 170W
Topology Class D
Frequency Response 10Hz~30KHz
Power Supply Full PWM
Power Supply (Threshold) 10.0VDC – 16.0VDC
Idle Current (0.7A)
Distortion - THD (1...
