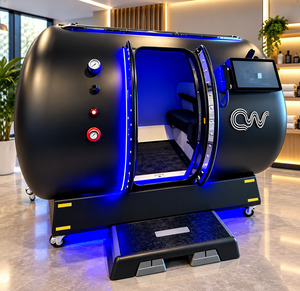

Capsule ‑ Sitting Chamber

The Capsule‑Sitting Chamber is a full‑size hard‑shell seated hyperbaric chamber with a generous 65‑inch depth for superior comfort. It is specifically designed for home‑use or premium home‑gym scenarios requiring 1.5‑2.0 ATA performance, allowing users to operate in an inclined reclining position.

It features a high‑visibility hard‑shell cabin integrated with an electric reclining seat and intelligent environmental control system.

Configurations from 1.1 ATA up to 2.0 ATA are available. The capsule chamber pairs with a compact host unit, where oxygen supply, pressure regulation, climate control and filtration are managed via one central console. Air‑conditioning is offered either as standard or optional, together with an advanced air‑purification package equipped with IFD sterilization and multi‑stage filtration.

Upgrades such as BIBS (Built‑In Breathing System) and internal red‑light therapy panels are available. You can build a multi‑modal seated recovery suite within the footprint of a single room.

Chamber Specifications

Model: KX-YS01
Material: nickel-steel alloy
Standard internal configuration:
- 1 aviation-grade zero-gravity electric sofa (seated and reclined positions, same model used in Emirates)
- 2 sets of basic oxygen inhalation devices
- 1 set of touch control panels (inside and outside)
- PC endurance plate door
- 5μm medical-grade filtration & negative ion disinfection system
- built-in air dehumidifier
Interior noise level: ≤20 dB
Interior diffused oxygen concentration: ≤25%
Interior humidity: approx. 26%
Interior negative ion concentration: approx.6,000 ions/cm³
Color options: Black / White / Grey

Main Unit Specifications (3‑in‑1)

Rated power: 1100W
Control mode: fixed intelligent touch screen
Oxygen outlet pressure: 100 to 140 kPa
Oxygen generation mode: PSA technology
Oxygen production flow: 15 L/min
Oxygen concentration: 90% ± 3%
Noise level: ≤ 50 dB
Air conditioning mode: water-cooled air conditioner
Temperature control range: 5 °C to 55 °C
