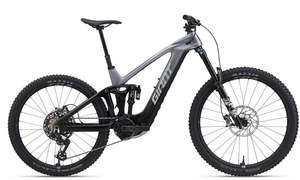

Giant 2026 Reign Advanced E+ 1
Please contact store for availability on 04 589 2822 or support@cyclescience.co.nz
Everything about the new Reign Advanced E is designed to make it the best descending E-MTB ever. From the bottomless feeling Maestro suspension with 170mm of rear travel (and a 180mm fork) to the punchy new SyncDrive Pro motor and its lightweight, stiff and ultra-adjustable composite frame. We added a titanium skid plate, robust frame protection, and an innovative bash-guard with an elastomer damper—so you can send it with confidence on the most rugged, technical terrain. DOMINANT ON DESCENTS
Featuring a modified Maestro suspension system with a new integrated lower link and 170mm of rear travel paired with a 180mm fork, this is best descending E-bike ever from Giant. Maestro’s floating pivot design means it’s always active and efficient under pedaling. Its progressive leverage curve makes the rear shock is easy to compress at the top of the stroke and super-supportive near the end range, producing a plush, bottomless feel that uses every bit of its travel. The result is unmatched confidence and control for big hits, steep drops and technical rock gardens. LIGHTWEIGHT YET POWERFUL
Upgrading from a 36-volt to 48-volt system results in better performance with reduced heat and energy loss. With 90Nm of torque and 800 watts of peak power, the new SyncDrive Pro motor lets you sustain a high torque level, even at higher pedalling cadences—so you feel powerful, consistent support in any riding situation The added power combined with a lighter composite frame and overall weight of just 22.3kg (size medium) means the Reign E Advanced packs a punch when you need it most. And the 48-volt system also produces less stress on the EnergyPak 560 battery, which has a lifespan of up to 2300 charge cycles. PREMIUM PROTECTION
Designed to shred hard and take a beating, the Reign Advanced E features a tough, dual-density battery cover that doubles as a full-length protector on the underside of the down tube—perfect for chairlifts, trailers or pickup truck shuttles. A new integrated skid plate protects the motor with corrosion resistant titanium that’s twice as strong as aluminum. And with less friction, the skid plate also helps keep you from getting hung up on rocks, roots, or other obstacles. Finally, a unique MRP active bash-guard, with an elastomer damper and suspended design, gives you unmatched chain and chainring protection. Specifications Giant 2026 Reign Advanced E 1
Frame
Size: S, M, L, XL
Colour: Mercury/Carbon Smoke
Frame: Advanced-grade composite, Advanced Forged Composite Upper Rocker, 170mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle
Fork: Fox 38 Performance Elite E-Tuned, 180mm travel, 44mm offset, GRIP X2 damper, Boost Kabolt-X 110x15mm
Shock: Fox Float X Performance, EVOL Large Volume sleeve, 2 position lever, custom tuned
Drivetrain
Crankset: Praxis e-HD crank arms SRAM Eagle T-Type steel direct mount, 36T chain ring S:160mm, M: 160mm, L:160mm, XL:160mm
Pedals:
Chain: SRAM Eagle 70 T-Type
Bottom Bracket:
Rear Derailleur: SRAM Eagle 90 T-Type
Front Derailleur:
Derailleur Shifter: SRAM Eagle 90, 1x12
Freewheel/Cassette: SRAM XS-1270, T-Type 10x52T
Braking System
Brakes: TRP DH-R EVO DH, hydraulic, TRP rotors F 220mm, R 220mm
Brake Levers: TRP DH-R EVO DH
Wheels
Tyres: Maxxis Assagai 29x2.5" foldable, Tubeless, EXO , 3C MaxxGrip F Maxxis Minion DHR II 27.5x2.4" foldable, Tubeless, DoubleDown, 3C MaxxGrip Compound R
Wheels/Rims: Giant E-TRA Hookless Tubeless ready Alloy 29"" F 27.5"" R 30mm inner width
Hubs: Giant E-TRX MTB Alloy Hub, 6 Bolt, 110x15 F / 148x12 SRAM XD Drive Body Pawl Driver (6 Pawl 72T) Thru-axle R
Other
Handlebar: Giant Contact Enduro, 35mm rise
Stem: Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:40mm
Seat Post: Giant Contact Switch travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 17
Saddle: Giant Romero
E-Bike
Drive Unit: Giant SyncDrive Pro 3, 48v, 90Nm, powered by Yamaha
Battery: Giant EnergyPak Smart 560Wh, integrated, 48V, Giant EnergyPak Plus 280 range extender
Controller: RideControl Ergo 4, grip integrated
Display: RideControl GO LUX, frame integrated LED display ANT
Charger: EnergyPak 4A smart charger
Geometry Giant 2026 Reign Advanced E 1
