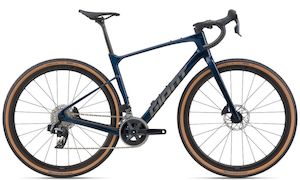

Giant 2026 Revolt Advanced Pro 1

Please contact store for availability on 04 589 2822 or support@cyclescience.co.nz GRAVEL CRUSHER

Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control. FAST AND VERSATILE

Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post. TUNED COMPLIANCE

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances. SMART INTEGRATION

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise. Specifications

Frame

Size: S, M, ML, L
Colour: Ocean twilight
Frame: Advanced-Grade Composite, 12x142mm thru-axle, flat mount disc, flip chip dropout, integrated downtube storage
Fork: Advanced SL-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock:

Drivetrain

Crankset: SRAM Rival D1 Wide DUB , 30/43 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Pedals:
Chain: SRAM Rival-E1, 12-speed
Bottom Bracket: SRAM DUB, Press Fit
Rear Derailleur: SRAM Rival AXS, RD-Force-E-E1
Front Derailleur: SRAM Rival AXS Wide D2
Derailleur Shifter: SRAM Rival AXS HRD, ED-Force-E1
Freewheel/Cassette: Shimano Ultegra, 12-speed, 11x30

Braking System

Brakes: SRAM Rival AXS HRD, ED-Riv-E1, SRAM PaceLine rotors F 160mm, R 160mm
Brake Levers: SRAM Rival AXS HRD, ED-Riv-E1

Wheels

Tyres: CADEX GX, 700x40c, tubeless
Wheels/Rims: Giant CXR 2 Carbon Disc WheelSystem, F 35mm, R 35mm
Hubs: F Giant alloy, CenterLock, 12mm thru-axle R Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle

Other

Handlebar: Giant Contact SLR XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem: Giant Contact Aerolight S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seat Post: Giant D-Fuse SLR, composite, -5/ 15mm offset
Saddle: Giant Grit SL
Geometry

XS S M ML L XL SHORT LONG SHORT LONG SHORT LONG SHORT LONG SHORT LONG SHORT LONG A Seat Tube Length (mm) 430 450 470 490 510 530 B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0° C Top Tube Length (mm) 540 550 560 575 585 600 D Head Tube Length (mm) 125 135 150 165 180 195 E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0° F Fork Rake (mm) 50 50 50 50 50 50 G Trail (mm) 78 - 82 72 - 75 68 - 72 65 - 68 65 - 68 65 - 68 H Wheelbase (mm) 1024 - 1034 1020 - 1030 1026 - 1036 1031 - 1041 1041 - 1051 1056 - 1066 I Chain Stay Length (mm) 425 - 435 425 - 435 425 - 435 425 - 435 425 - 435 425 - 435 J Bottom Bracket Drop (mm) 80 - 81 80 - 81 80 - 81 80 - 81 80 - 81 80 - 81 K Stack (mm) 556 570 586 602 616 630 L Reach (mm) 381 381 387 391 397 407 M Stand Over Height (mm) 724 - 731 740 - 747 757 - 764 774 - 780 791 - 797 807 - 814 O Stem Length (mm) 50 60 70 80 80 90 P Crank Length (mm) 170 170 172.5 172.5 175 175
