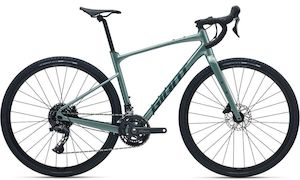

Giant 2026 Revolt 1

Please contact store for availability on 04 589 2822 or support@cyclescience.co.nz

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance. Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain. Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing. Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post. Specifications

Frame

Size: S, M, ML, L, XL
Colour: Alpine Green
Frame: ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock:

Drivetrain

Crankset: Shimano Cues U6030, 32-46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Pedals:
Chain: KMC X11
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano Cues U6020, Shadow
Front Derailleur: Shimano Cues U6030
Derailleur Shifter: Shimano Cues U6030, 2x10
Freewheel/Cassette: Shimano LG300, 11-39

Braking System

Brakes: Shimano Cues U6030 hydraulic, Giant MPH rotors F 160mm, R 160mm
Brake Levers: Shimano Cues U6030 hydraulic

Wheels

Tyres: Giant CrossCut AT 2, 700x38c, tubeless
Wheels/Rims: Giant S-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle

Other

Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seat Post: Giant D-Fuse, alloy, 14mm offset
Saddle: Giant Grit
Gemeorty

Selection of a button will change the units measurement displayed throughout the entire sizing guide section. XS S M ML L XL SHORT LONG SHORT LONG SHORT LONG SHORT LONG SHORT LONG SHORT LONG A Seat Tube Length (mm) 430 450 470 490 510 530 B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0° C Top Tube Length (mm) 540 550 560 575 585 600 D Head Tube Length (mm) 125 135 150 165 180 195 E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0° F Fork Rake (mm) 50 50 50 50 50 50 G Trail (mm) 78 - 82 72 - 75 68 - 72 65 - 68 65 - 68 65 - 68 H Wheelbase (mm) 1029 - 1039 1025 - 1035 1030 - 1040 1035 - 1045 1045 - 1055 1061 - 1071 I Chain Stay Length (mm) 430 - 440 430 - 440 430 - 440 430 - 440 430 - 440 430 - 440 J Bottom Bracket Drop (mm) 80 - 81 80 - 81 80 - 81 80 - 81 80 - 81 80 - 81 K Stack (mm) 556 570 586 602 616 630 L Reach (mm) 381 381 387 391 397 407 M Stand Over Height (mm) 717 - 724 734 - 741 752 - 759 769 - 776 786 - 793 801 - 810 O Stem Length (mm) 50 60 70 80 80 90 P Crank Length (mm) 170 170 172.5 172.5 175 175 Q Wheel Size 700x 42C - 700x 42C - 700x 42C - 700x 42C - 700x 42C - 700x 42C
