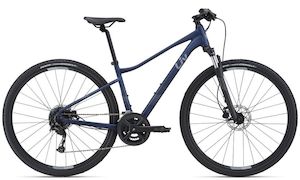

Liv 2022 Rove 2 DD

Main street, side streets or forest trails. Your choices are limitless with the versatile Rove.

Dirt-Road Ready

A suspension fork offers more comfort and control when you leave the pavement for gravel and trails.

Stability and Control

Responsive, reliable disc brakes help you keep your speed in check, even in wet weather.

Useful

Integrated mounts let you attach a rear cargo rack, and the low standover height makes getting on and off less a hassle when you’re running errands by bike.

Specifications

Frame

Colour: Eclipse
Frame: ALUXX-Grade aluminium, disc
Fork: SR Suntour NEX HLO 700C, 63mm, disc
Shock: N/A
Weight: N/A

Drivetrain

Crankset: Forged alloy, 30/46 XS:165mm, S:170mm, M:170mm
Pedals: N/A
Chain: KMC X9 with Missing Link
Bottom Bracket: Sealed cartridge
Rear Derailleur: Shimano Alivio
Front Derailleur: Shimano Acera
Derailleur Shifter: Shimano Altus M2010, 2x9
Freewheel/Cassette: Shimano HG200, 11x36

Wheels

Tires: Giant CrossCut, 700x42c, puncture protect
Wheels/Rims: Giant double wall aluminium
Hubs: Alloy, 28h

Braking System

Brakes: Tektro TDK149, hydraulic disc F 160mm, R 160mm
Brake Levers: Tektro

Other

Handle Bar: Giant Sport XC, 31.8mm
Stem Headset: Giant Sport XS:70mm, S:80mm, M:80mm
Grips: Liv Ergo, dual density
Saddle: Liv Sport Comfort
Seat Post: Giant D-Fuse, alloy
Extras: 55mm max tire size
Sizing Guide

- XS 148 cm 163 cm
- S 158 cm 169 cm
- M 164 cm 175 cm
- L 170 cm 183 cm

XS S M A SEAT TUBE LENGTH (mm) 380 420 460 B SEAT TUBE ANGLE 74.0° 73.5° 73.0° C TOP TUBE LENGTH (mm) 550 570 590 D HEAD TUBE LENGTH (mm) 110 120 135 E HEAD TUBE ANGLE 70.5° 70.5° 70.5° F FORK RAKE (mm) 42 42 42 G TRAIL (mm) 85.1 85.1 85.1 H WHEELBASE (mm) 1059 1074 1089 I CHAIN STAY LENGTH (mm) 450 450 450 J BOTTOM BRACKET DROP (mm) 62 62 62 K STACK (mm) 601 611 625 L REACH (mm) 378 389 399 M STAND OVER HEIGHT (mm) 679 691 708 O STEM LENGTH (mm) 70 80 80 P CRANK LENGTH (mm) 165 170 170 Q WHEEL SIZE 700C 700C 700C
