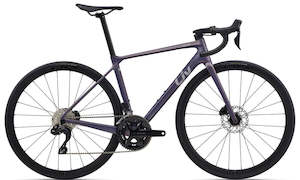

Liv 2026 Langma Advanced 1-PC

Please contact store for availability on 04 589 2822 or support@cyclescience.co.nz

The official bike of road riding season, the Langma Advanced was designed to climb mountains and leaderboards. The re-engineered frameset and components are seamlessly integrated for effortless ascents and fearless descents. Streamlined aerodynamics round out this all-rounder, inspiring you to push limits all day long. QOM-LEVEL EFFICIENCY

The re-engineered frameset and integrated components yield efficient power transfer for quick bursts of speed and sustained climbing prowess. LIMIT-PUSHING CONTROL

Up to 33mm tire clearance means you’re ready for any road, from the freshly-poured to the weather-beaten, without compromising handling. The flared handlebar injects control and confidence into those explosive sprints and bomber descents. GAP-WIDENING AERO

With truncated ellipse tube shapes and a new internal cable routing design, you’ll reduce drag, pick up speed, and watch the scenery fly by. Specifications

Frame

Size: XS, S, M
Colour: Meteorite Mist
Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm, disc
Shock:

Drivetrain

Crankset: Shimano 105, 36/52 XS:165mm, S:165mm, M:170mm
Pedals:
Chain: KMC X12L-1
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano 105 Di2
Front Derailleur: Shimano 105 Di2
Derailleur Shifter: Shimano 105 Di2
Freewheel/Cassette: Shimano 105, 12-speed, 11x34

Braking System

Brakes: Shimano 105 hydraulic, Shimano RT-64 rotors F 160mm, R 140mm
Brake Levers: Shimano 105 Di2

Wheels

Tyres: Giant Gavia Course 1, tubeless, 700x28c (28mm), folding
Wheels/Rims: Giant P-R1 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle

Other

Handlebar: Liv Contact XS:36cm, S:38cm, M:40cm
Stem: Giant Contact AeroLight XS:80mm, S:90mm, M:100mm
Seat Post:Giant Variant, composite, -5/ 15mm offset
Saddle: Liv Approach
Geometry

XS S M A Seat Tube Length (mm) 420 450 480 B Seat Tube Angle 75.0° 74.5° 74.0° C Top Tube Length (mm) 508 524 540 D Head Tube Length (mm) 120 135 155 E Head Tube Angle 71.0° 72.0° 72.5° F Fork Rake (mm) 49 49 49 G Trail (mm) 68 61 58 H Wheelbase (mm) 973 977 984 I Chain Stay Length (mm) 405 405 405 J Bottom Bracket Drop (mm) 72 70 70 K Stack (mm) 517 532 553 L Reach (mm) 370 377 382 M Stand Over Height (mm) 707 736 763 O Stem Length (mm) 80 90 100 P Crank Length (mm) 165 170 170 Specs
