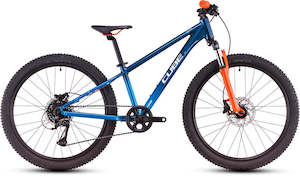

Cube Acid 240 Disc Actionteam

This is the bike that all youngsters are going to want – light, strong and equipped with everything they’ll need for off-road adventuring with friends and family. Hydraulic disc brakes are powerful and easy to control, with levers specially designed for small hands. The Suntour suspension fork improves comfort and control on rough trails, and the 8-speed, wide-ranging gears are easy to use and give a range that’ll make light work of any hill. And every component, from the saddle to the handlebar and grips, is designed to fit smaller humans just right. Off-road adventures are just a few pedal strokes away…

Built from the same heat-treated 6061 aluminium tubes as our adult bikes, the Acid 240 Disc’s frame is every bit as tough as a full-size mountain bike, but with the right weight and proportions for a child. Disc mounts allow the use of these powerful, safe and easy-to-use brakes. There’s a bottle mount for mid-ride refreshment and rack mounts, too. The handling is designed to be both fun and confidence-inspiring. And, because we know accidents can happen, we made the gear hanger easily replaceable so that a knock or crash needn’t result in an expensive repair. Bike Specifications

FRAME
Material: Aluminium Lite 6061
Features: Disc brake mounts, Bottle mount, Rack mounts, Replaceable gear hanger

SIZE
Available Sizes: 24"

SUSPENSION
Fork: SR Suntour SF20 XCT JR, 60mm
Headset: CUBE FPH863, Semi-Integrated

COCKPIT
Stem: CUBE Aluminium Lite
Handlebar: CUBE Aluminium Lite, 580mm
Grips: ACID Kids

DRIVETRAIN & BRAKES
Rear Derailleur: Shimano RD-M3020, 8-Speed
Shifters: Shimano SL-M315, Rapidfire-Plus
Brake System: Shimano BR-MT200, Hydraulic Disc Brake (160/160)
Bottom Bracket: Thun PASO-ML BSA
Crankset: ACID 32T, 127mm with Chainguard
Cassette: Sunrace CSM55, 11-34
Chain: KMC Z8.3

WHEELS
Rims: CUBE DB29
Front Hub: CUBE Aluminium Disc 6-Bolt, 28H
Rear Hub: CUBE Aluminium Disc 6-Bolt, 28H
Tyres: Meghna, 2.1

FINISHING KIT
Saddle: CUBE PP MTB
Seat Post: CUBE Kid
Seat Post: CUBE Aluminium Lite
Seat Clamp: CUBE Varioclose, 31.8mm

WEIGHT & MISC
Colour: actionteam
Weight: 11.8 kg
Maximum Rider Weight: 80 kg
