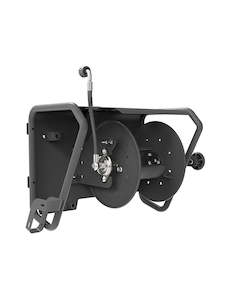

Active™ Hose Reel & Wall Mount

The Active Premium hose reel and wall mount combo solution was developed using consumer feedback, preferences and industry expert guidance.

This package includes a hose reel capable of storing up to 30m of 3/8' hose and 45m of 5/16' hose, wall mount cage with dedicated slots for pressure washer gun, foam cannon, lance and 4 nozzles. A 16" backing plate for safe mounting on the wall and a 5/16" diameter jumper hose with an M22-14mm connector for install with the pressure washer.

The solution aims to be an integral accessory to the car wash experience in your garage, which ties in the Active pressure washer range to the active accessory bundle and completes the set of products for an integrated wash experience.

Technical Specs:

Hose Reel

- Inlet fitting: 3/8" QC female coupler
- Outlet fitting: M22x14mm
- Extension hose pre-installed
- Reel rotation lock: release lock pin before turning the reel
- Hand crank: customer need install hand crank and lock by pin
- Hose clamp: customer needs to make adjustment to secure hose
- Stainless steel (304) reel valve

Metal frame

- Hose reel is pre-installed on frame
- Customer installation is required for wall mount mode
- Customer installation required for gun holder and fasten by screw
- Customer adjustment is required for hose clip

Hardware

- 4pcs 6x30 mm screws to fasten mounting plate on the wall
- 4pcs M8x 20mm bolts to secure wall mount to mounting plate
- 2pcs M5x14 bolt to secure gun holder on frame

Accessories

- Hand crank with lock pin
- Mounting plate
- Gun holder
- Hardware kit
- Jumper / lead hose to pressure washer (M22 x 14mm - female)

Measurements:

Hose reel

- Outer disc diameter: 300 mm
- Inner barrel diameter: 120 mm
- Reel width: 200 mm
- Max. accommodate hose: 5/16" pressure hose, 100 ft

Metal cage

- Width Depth Height (mm): 525 x 350 x 405
- Mounting plate bolt holes layout: 16 inches x 5.6 inches x Φ8.0mm
- Max loading capacity: 40kg
