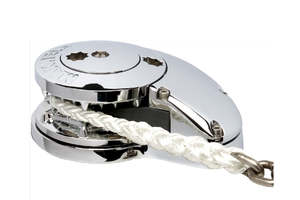

Maxwell RC8-6 Anchor Winch Pack – 12V 600W Rope/Chain Windlass

The Maxwell RC8-6 Anchor Winch is a compact, high-performance automatic rope/chain windlass designed to deliver smooth, reliable anchoring for small to mid-size boats. Built with marine-grade materials and proven Maxwell engineering, the RC8-6 provides dependable power, efficient rope-to-chain transition, and long-term durability in demanding marine environments.

Featuring a powerful 600W motor, this vertical windlass automatically handles anchor deployment and retrieval, making anchoring easier, safer, and more efficient. Its low-profile design saves deck space while maintaining strong pulling performance and smooth operation.

Designed for use with 6–7 mm chain and 12 mm rope, the RC8-6 delivers seamless rope-to-chain handling using Maxwell’s proven chainwheel system, ensuring reliable anchoring whether cruising, fishing, or operating offshore. Key Features

Powerful 12V 600W motor for dependable anchor retrieval

Includes switching gear: Windlass/motor/gearbox - Reversing Heavy Duty Solenoid - Up/Down Panel Control Switch - 80 Amp Circuit Breaker/Isolator

Fully automatic rope/chain windlass operation

Suitable for 6–7 mm chain and 12 mm rope

Compact low-profile design saves deck space

Smooth rope-to-chain transition for reliable anchoring

Durable marine-grade construction for long service life

Manual override and emergency free-fall capability

Easy installation and serviceable gearbox design Technical Specifications

Model: Maxwell RC8-6

Motor Power: 600W

Voltage: 12V DC

Maximum Pull: Approx. 350 kg

Static Hold: Approx. 1200 kg

Recommended Chain: 6–7 mm short link

Recommended Rope: 12 mm nylon / 8-plait

Chain Speed: Approx. 28 m/min

Weight: Approx. 12.5 kg
- Includes switching gear: Windlass/motor/gearbox - Reversing Heavy Duty Solenoid - Up/Down Panel Control Switch - 80 Amp Circuit Breaker/Isolator
