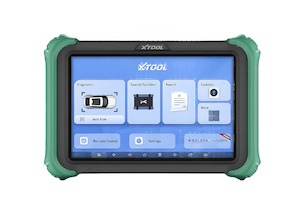

XTOOL Compass Master Flagship Smart diagnostic Scan Tool
COMPASS is your ultimate diagnostic companion, designed for efficiency and precision. Featuring a crystal-clear 10.1" display and powerful performance, it ensures seamless operation for professionals. With J2534 support (optional), it enables OEM software connectivity for advanced diagnostics and programming. Covering a wide range of vehicles, it offers topology mapping, ADAS calibration, and online coding. Plus, with wireless charging and long battery life, you can work without limits. COMPASS — smart, powerful, and built for the future of automotive diagnostics!
- Features a 10.1-inch display with a resolution of 1920 x 1200 and runs on the Android 10.0 operating system
- Powered by an octa-core processor (2.2GHz 1.8GHz) and comes with 8GB RAM and 128GB of internal storage
- Dual Wi-Fi connectivity allows simultaneous connections to the internet and the VCI
- Equipped with a 9600mAh, 7.2V high-capacity battery for extended working hours
- Includes an 8MP rear camera for capturing diagnostic or vehicle condition images
- Supports all standard diagnostic protocols along with DoIP and CANFD for advanced vehicle communication
- SAE J2534 compatibility is available (optional) for OEM software connectivity.(COMPASS MASTER)
- Provides extensive vehicle coverage, including U.S., European, and Asian models
- Features a topology module mapping function with color-coded system status displays (on supported vehicles)
- Supports offline programming for Ford, Lincoln, and Mazda, as well as online coding and programming for VAG, BMW, and Mercedes-Benz
- Enables ADAS system calibrations for both cameras and radar-based systems
- Comes with OBDI connectors and a convenient wireless charging dock
- Generates enhanced diagnostic reports, including PreSCAN and PostSCAN documentation
- Includes a 3-year software subscription for continuous updates and improvements
- Offers access to a comprehensive maintenance documentation library (available as an additional paid option)
- Fully integrated with AutoAuth™ to provide seamless access to FCA's Secure Gateway (SGW)
Parameters
- Operating System：Android 10.0
- Communication Method：Dual Wi-Fi, USB
- Processor：2.2GHz 1.8GHz Octa-core Processor
- Connectivity：Type-C
- Memory：8G 128G
- Working Voltage：9-36V
- Display：10.1-inch, 1920×1200
- Battery：6400 mAh, 7.2V
- Camera：8MP rear
- Working Temperature：0 to 40℃
- Auto Input/Output：Microphone, Speaker
- Storage Temperature：-40 to 60℃
- Compatible Protocol：CANFD, DoIP
Accessories
- Color Carton
- Packing List
- Certificate of Quality
- Tool Case
- Quick Guide
Main Units
- Tablet
- VCI Box
- Power Supply (PD)
- Charging Adapter (EU)
- Charging Adapter (AU)
- PD-12V Power Cable (Type-C to DC)
- Data Cable (Type-C To Type-C)
- Adapter (Type-C to Type-A)
Test Connectors
- CITROEN-2
- VW/AUDI-2 2
- MITSUBISHI/HYUNDAI-12 16
- UNIVERSAL-3
- BENZ-14
- BENZ-38
- BMW-20
- GM/DAEWOO-12
- HONDA-3
- TOYOTA-17
- NISSAN-14
- KIA-20
- HYUNDAI/KIA-10
- MAZDA-17
- SUZUKI-3
- FIAT-3
