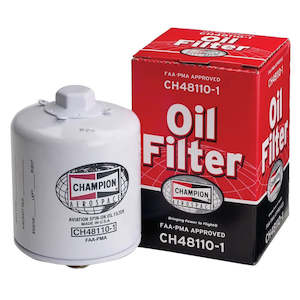

Champion Oil Filter CH48110-1 Spin On - Short
The Champion Oil Filter CH48110-1 with full-pleat, resin-impregnated micronic filter media traps all harmful particles, including metallic chips which result from abnormal engine wear. Because the oil flows through many layers of locked-in fibers, there is no migration of fiber material to clog engine oil passages or affect bearing surfaces.
Champion-brand oil filters keep dirt and harmful particles from damaging your engine. Plus, no other filters on the market have Champion-s unique, resin-impregnated, full-pleat design - 8.2 feet of layered protection for your engine.
According to industry-approved tests, the Champion oil filter traps and holds more dirt and harmful particles during its normal operating time than any other similar filter.
In 1974, the first Champion-brand spin-on filter was introduced. Today, Champion Aerospace distributes Champion-brand spin-on oil filters and element filters that incorporate a semi-depth filter media.
The filters combine the advantages of both surface and depth-type filtratration: high filtering efficiency, controlled porosity for uniform flow, water resistance, and the resistance to impulse and flow fatigue.
FEATURES
• Silicone Impregnated Filter Gasket for future removal of the filter, reducing maintenance time and effort
• Heavy, corrugated steel center tube supports each pleat of the filter element, offering a higher collapse-pressure rating—twice that of similar filters—ensuring durability and reliability
BENEFITS
• Maximum full-flow design enhances oil filtration efficiency for each hour of engine operation, without interference from the center-bolt oil filter assembly
• Modern spin-on oil filters incorporate an anti-drain back valve mechanism and internal bypass valve (48108-1/48109-1), all sealed in a disposable housing for convenience and improved engine protection.
SPECIFICATIONS
• Length: 4.48 Inches (11.4 cm)
• Diameter: 3.71 Inches (9.4 cm)
• Thread: 3/4-16-UNF-2B
• Dry Weight: 1.40lbs. (0.64kg)
• Hex. Height: 0.43 Inches (1.09 cm)
• Hex. Width: 1.00 Inches (2.54 cm)
• Suitable For Use With: Cessna (320, 340, 401 & 402), Piper, Seneca II & Others 43/4'H
