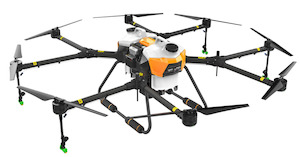

Drone Sprayer 8 rotor 22L

FDXD-8R-22L drone sprayer is Flydragon UAV company's new agriculture drone for 2020, foldable design easy to delivery FDXD-8R-22L drone sprayer max takeoff weight is 55KG, payload 22L, flight time is 15 minutes, effective working area is 4 acres each flight with 2 pieces 12S 16000mah

Specifications

---------------------------------------------------------------------
---------------------------------------------------------------------
Frame Recommended configuration

Wheelbase ：2122mm

Motor：X8

Expand Size :2050 2050 643mm

Propeller：28-30inch

Folded size :1107 1107 643mm

ESC：80A FOC

Tank capacity: 11L 2

Input Voltage： 12S

Frame Kit weight :14kg（ Without spraying system ）

MTOW：55kg

Pump

Size：85mm 66mm 58mm

Power：180W

Weight：300g Maximum

Flow rate ：5.5L/min

Input voltage ：43~60V

Stroke range ：1100-1900μs

Maximum current ：3A

Pressure ：0.58Mpa
